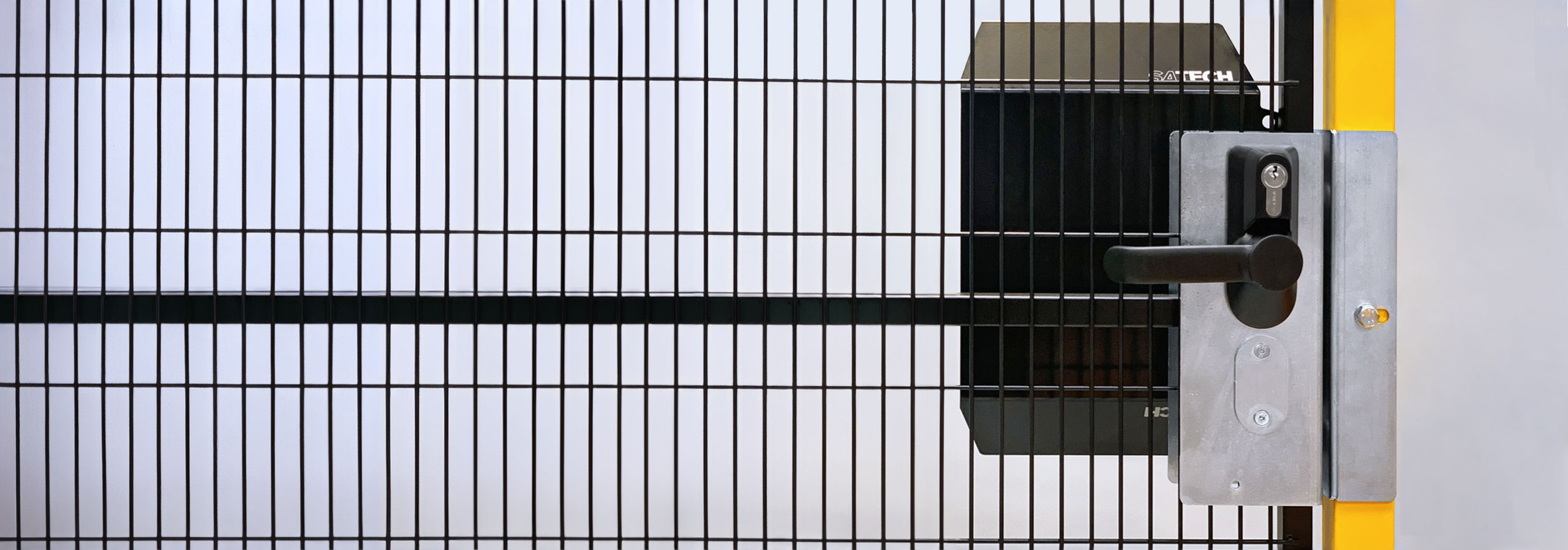

Machinery Safety Guards Locks

Locking Systems

Safe Access, at any Level

Satech doors can be completed by over 150 models of locks with different mechanisms, so as to reach the Required Performance Level (PLr) for control systems.

  • 150+
    Locking systems available

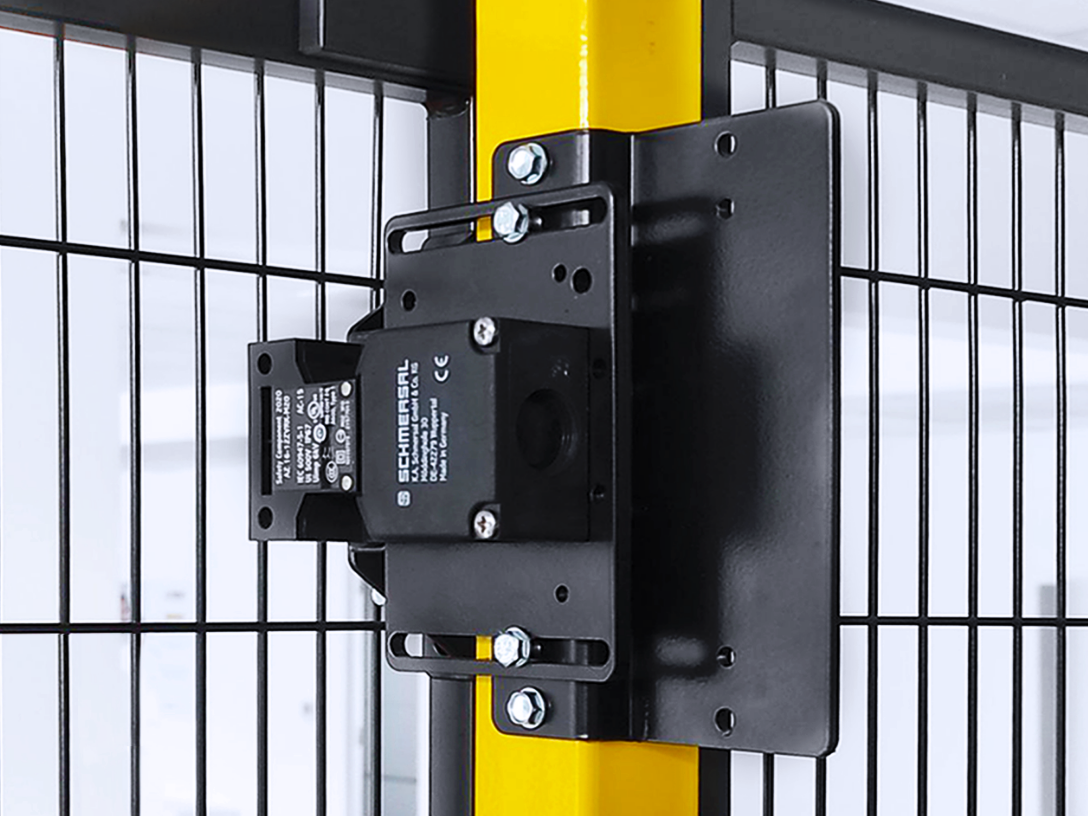

  • Satech Protezioni Perimetrali - Offriamo una gamma di chiusure adatte a tutti i Livelli di Prestazione richiesti nei sistemi di sicurezza.
GET TO KNOW MORE

Which Lock is right for you?

Control systems and Required Performance Level

The EN ISO 13849-1 Standard defines the requirements to design and construct control systems and their parts for the safety of machinery. Among these, locks installed on the Guards are part of control systems.

Determining the safety functions performed by control systems is an important step for risk reduction. Each safety function is associated to a Required Performance Level (PLr), i.e. the Performance Level to be reached in order to achieve the required risk reduction for each safety function. Performance Levels are determined by the following: severity of injury, frequency and/or exposure to a hazard and the possibility of avoiding hazard or limiting harm.

The greater the amount of risk reduction required, the higher the PLr must be. It is for this reason that different locks fulfill different safety needs.

RISK ANALYSIS IS CRITICAL IN DETERMINING THE PERFORMANCE LEVEL REQUIRED. Discover more

Risk assessment as well as the determination of safety functions and performance levels are the sole responsibility of the customer. Satech is limited to the sale of products and assumes no responsibility if the locking system purchased covers a Performance Level that is not appropriate for the corresponding control system.

Proper risk assessment conducted by experienced and qualified professionals will tell you which locking system is the right choice for you.

Magnet Lock

Ergonomics and safety

6
Min. order preparation time: 6 business days

Lock consisting of a plate with a high-visibility ergonomic handle and a supermagnet that secures the door in place. Ideal when there is no risk involved.

VERSIONS AVAILABLE
Magnet
MAX PLr
Not applicable

Mechanical Locks

Versatility and functionality

6
Min. order preparation time: 6 business days

Locks suitable for situations where the risk is low, e.g. for the partitioning of areas. They provide perfect integration with brackets and Safety Switches.

VERSIONS AVAILABLE
With key
With panic handle
MAX PLr
Not applicable

Interlocks

Maximum protection of operators and processes

6
Min. order preparation time: 6 business days

Device connected to the machine control system. When in open position, it stops the machine from working. Suitable in the presence of high risk.

VERSIONS AVAILABLE
Interlocks from leading manufacturers (Schmersal, Euchner, Pizzato, Pilz...)
MAX PLr
e

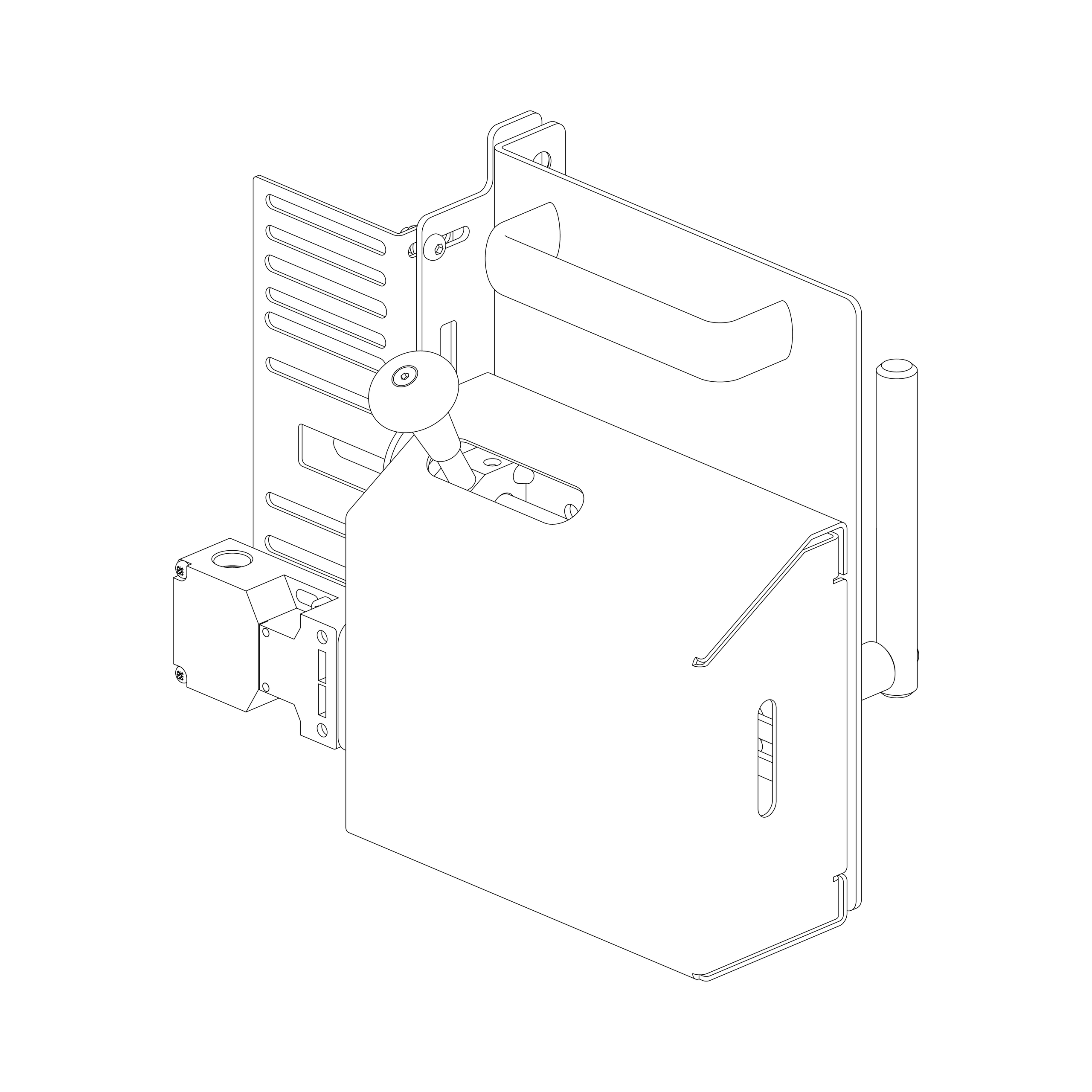

D-FenceLock

Durability and reliability

6
Min. order preparation time: 6 business days

The Satech D-FenceLock with integrated Safety Switch features a Safety Switch or an interlock, panic release and hold-open device to prevent accidental lockups.

VERSIONS AVAILABLE
D-FenceLock 3
D-FenceLock 4
MAX PLr
c
D-FenceLock 3
d
D-FenceLock 4

Other Products and Complements for Machinery Safety Guards

Standard%20Doors|h3|

Standard Doors

Our line of doors designed for the passage of people, pallet trucks, forklifts or overhead cranes.

LEARN MORE
Modular%20Panels|h3|

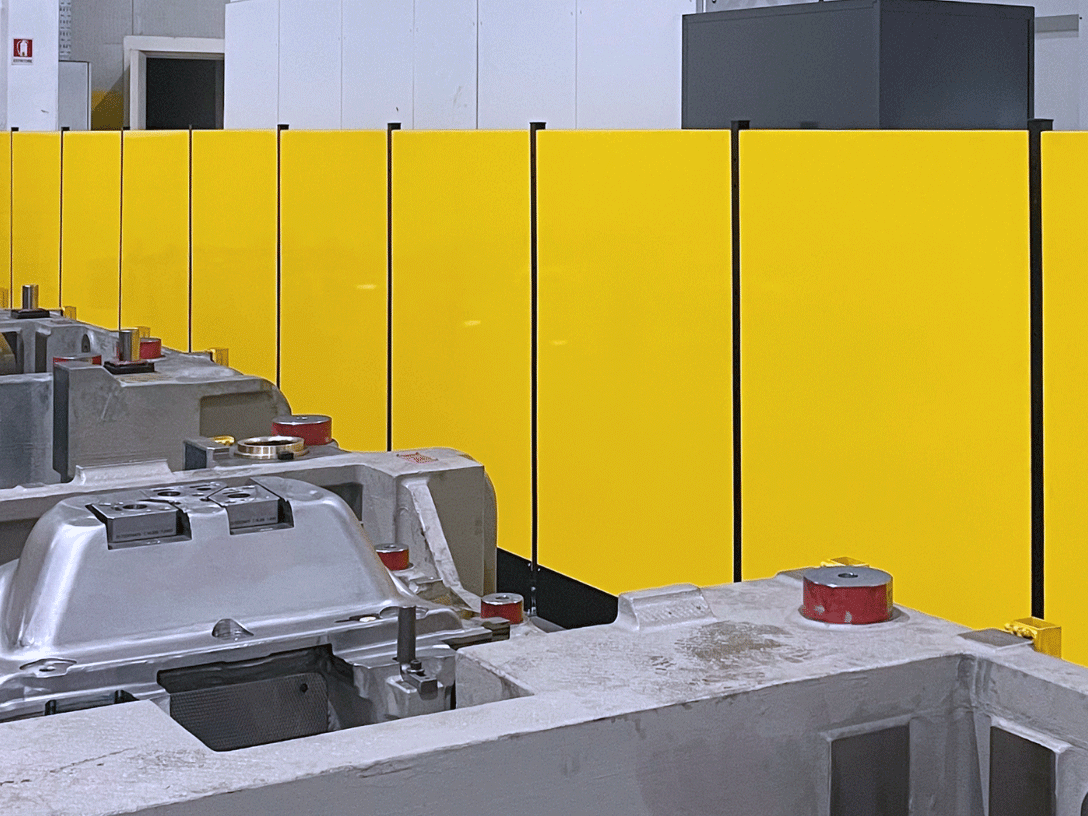

Modular Panels

In addition to mesh panels, our framed Systems can be built with panels in different materials.

LEARN MORE
Accessories%20%26%20Brackets|h3|

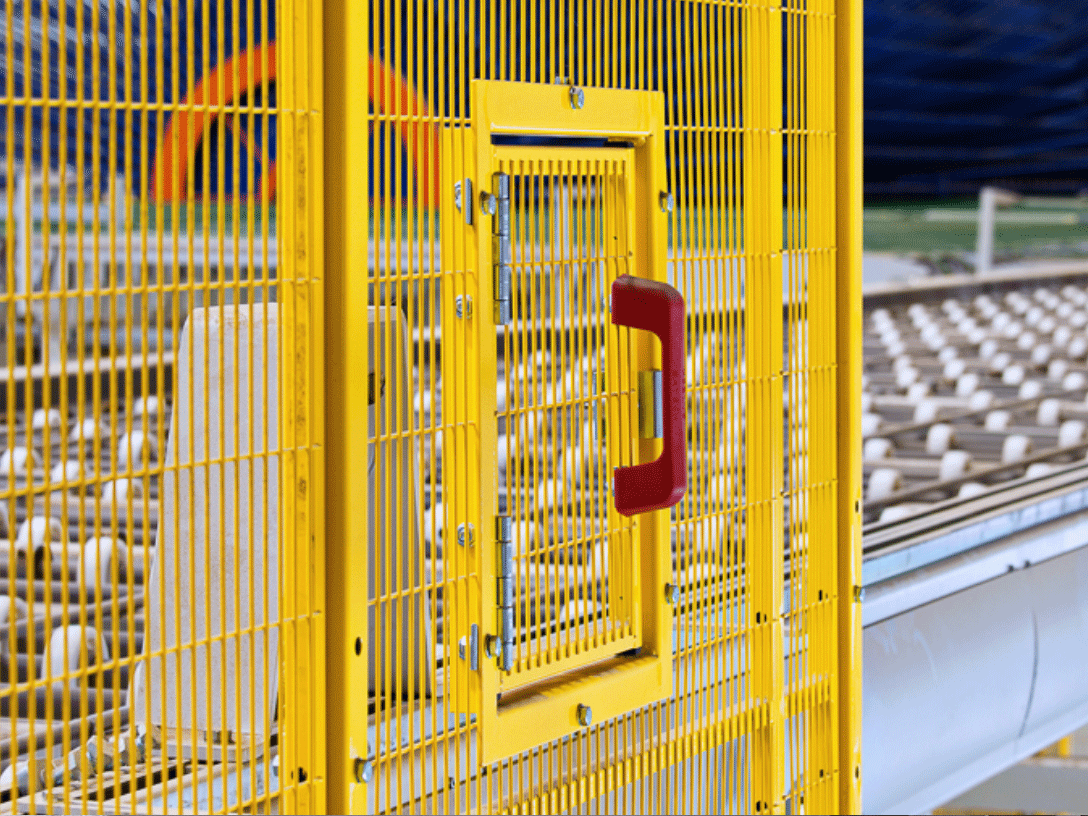

Accessories & Brackets
