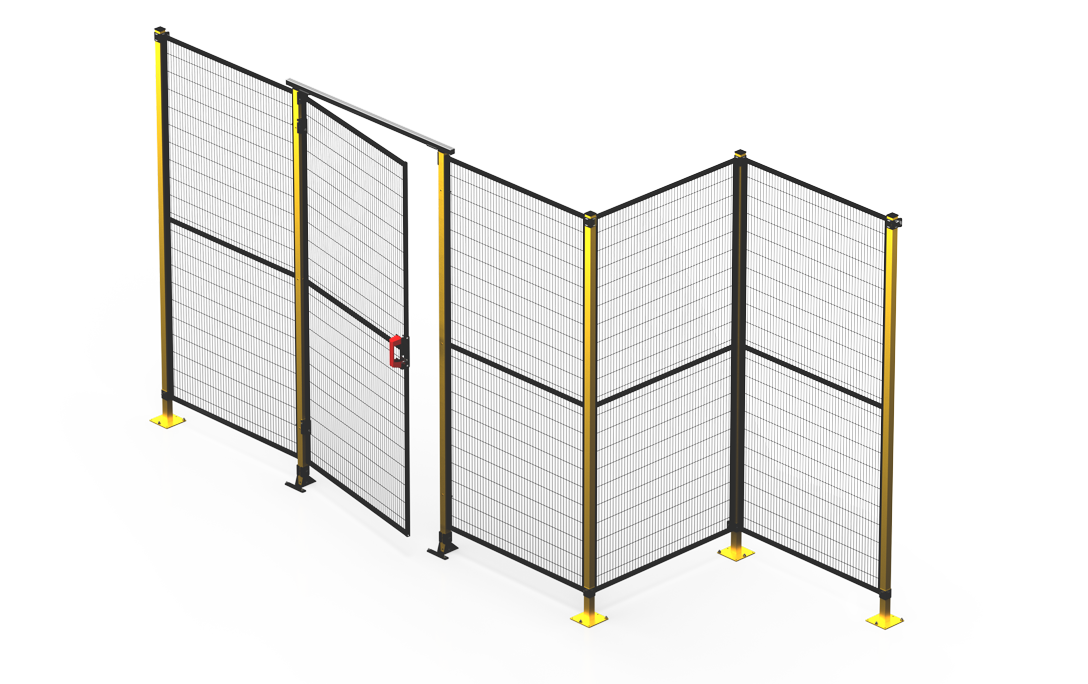

The functional and ergonomic Perimeter Guard for Machinery.
EasyGuard is a Perimeter Guarding System that is simple and effective. Two smooth-surface post options, a new welded baseplate and the practical Clamp assembly make EasyGuard a suitable choice for the protection of most industrial applications.

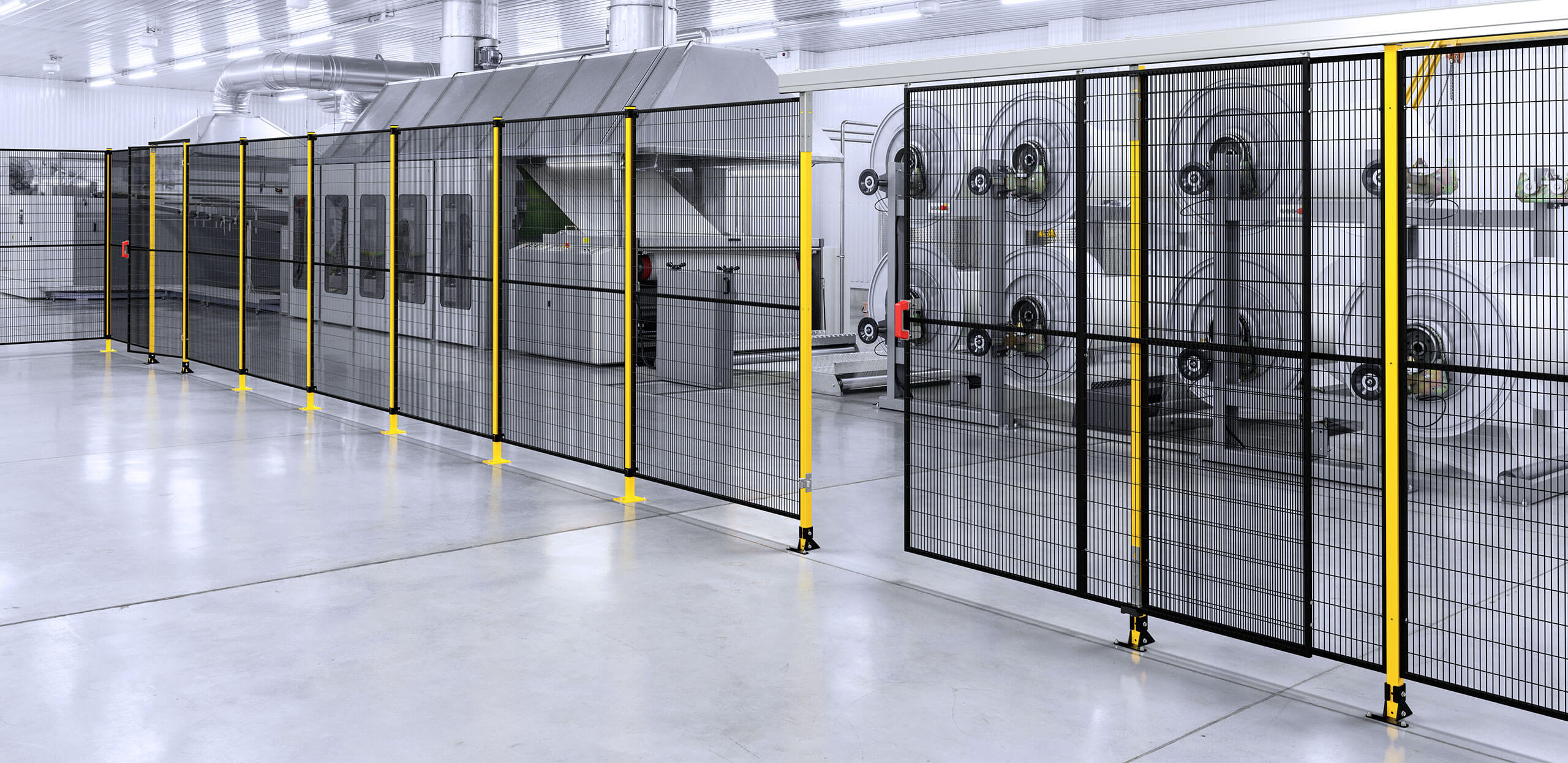

EasyGuard Perimeter Protection
Key technical features of the System
Panels
- MESH (mm)
- 20 x 100 x 3
- MESH SLOT (mm)
- 17 x 97
- WIDTHS (mm)
- 200300700800100012001500
7 STANDARD WIDTHS, INFINITE POSSIBILITIES
The combination of our 7 standard panels joined together allows to create all the intermediate widths in 100 mm increments.
- HEIGHTS (mm)
- 148020802480
Posts
- BASEPLATES
- 140 x 140 x 5 welded, with 3 anchoring points
- HEIGHTS (mm)
- 164022402640
Colors
- RAL COLORS
- RAL 9005 RAL 7035 RAL 1021 CustomGuard Colors
- COATING
- Powder (for indoor use only)

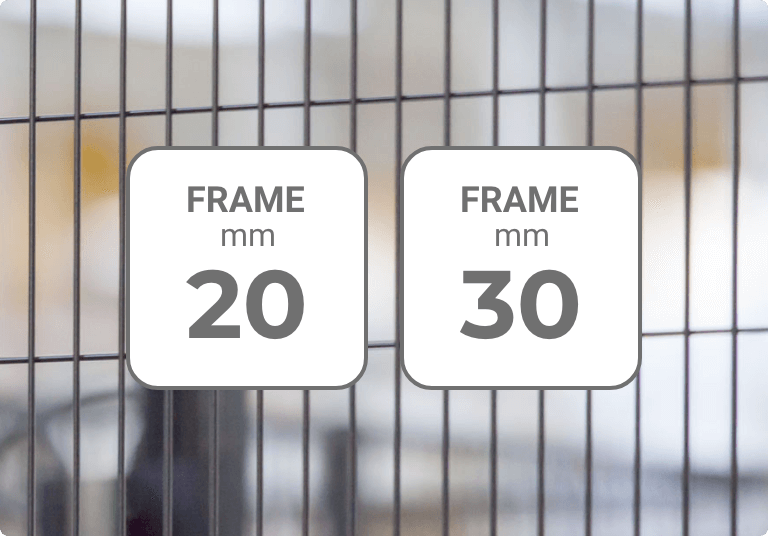

The Satech Modular Framed Panel
Safe, practical, resistant
New posts without holes
The new EasyGuard posts come without holes on all 4 sides, ensuring an aesthetic look and perfect interchangeability anywhere in the layout. They are available in 40 mm and 60 mm sections to ensure greater resistance to possible accidental impacts from the outside.
A new design for Satech baseplates
A new 3-anchoring points baseplate that ensures the best grip on the ground, reduces installation time and can be tilted to compensate for floor inclination. A Standard feature on all Satech systems in painted steel.
New Baseplate
• Stability and resistance • Optimized ground anchoring • Adjustable tilting
Intuitive assembly
EasyGuard’s new Clamp with captive retained screws (2006/42/EC Machinery Directive) and the new posts with 3 anchoring points make assembly easy and reduce time spent installing the Perimeter Guard.
A versatile System that is simple and practical
Two smooth-surface post options, a new welded baseplate and the practical Clamp assembly make EasyGuard a reliable Guard with renewed versatility.
 |  |  |  |  | ||
|---|---|---|---|---|---|---|
| Machine Guard - Standard heights (mm) | 1620, 2220, 2620 | 1620, 2220, 2620, 3100 | 1620, 2220, 2620 | 1620, 2220, 2620 | 2220 | |
| Frame section (mm) | 20 | 20 | 20 / 30 | Frameless | Frameless | |
| Post section (mm) | 40 / 60 | 40 / 60 | - | 50 | 60 | |
| Captive Assembly System | Quick Clamp | Screws | Upper Connections + Special Baseplates | Techno-polymer fastenings | Food techno-polymer fastenings | |
| Price range | €€ / €€€ | €€ / €€€ | € / €€ | €€€ | €€€€ | |
| Speed of assembly | ||||||
| Mesh (mm) | 20 x 100 x 3 | 20 x 100 x 3 | 20 x 100 x 3 | 32 x 50 x 4 | 32 x 68 x 4 | |
| Tested resistance to Impact (max) | 250 J | 2200 J | 390 J / 500 J | 1600 J | 600 J | |
| Min. Distance from hazard (mm) | 120 (EN ISO 13857) | 120 (EN ISO 13857) | 120 (EN ISO 13857) | 200 (EN ISO 13857) | 200 (EN ISO 13857) | |
| Non-mesh panel options(FullSteel, transparent sheet, mixed) | - |
EasyGuard Perimeter Protection
Resources
EasyGuard - Product Video
Discover how to assemble our EasyGuard Perimeter Guarding System in this video.
EasyGuard - Assembly Instructions
DownloadEasyguard’s 3D Models Are Available for Download on TraceParts!
COMPLETE LIBRARYPerimeter Guard Products and Complements
EasyGuard can be completed with a wide range of high-quality Doors, Panels, Locking Systems and Accessories.
Standard Doors
Our line of doors designed for the passage of people, pallet trucks, forklifts or overhead cranes.
DISCOVER OUR DOORS
Modular Panels
In addition to mesh panels, our framed Systems can be built with panels in different materials.
DISCOVER OUR PANELS
Locking Systems
We offer a range of locks suitable for all Performance Levels required in security systems.
DISCOVER OUR LOCKING SYSTEMS
Accessories and Brackets
Mounting Complements and Brackets for the full customizationof your Perimeter Guard.
