Protezioni Perimetrali Satech - Protezione Anticaduta Uomo BodyGuard

Pedestrian and Walkway Protection

BodyGuard

Fall Prevention Guardrail

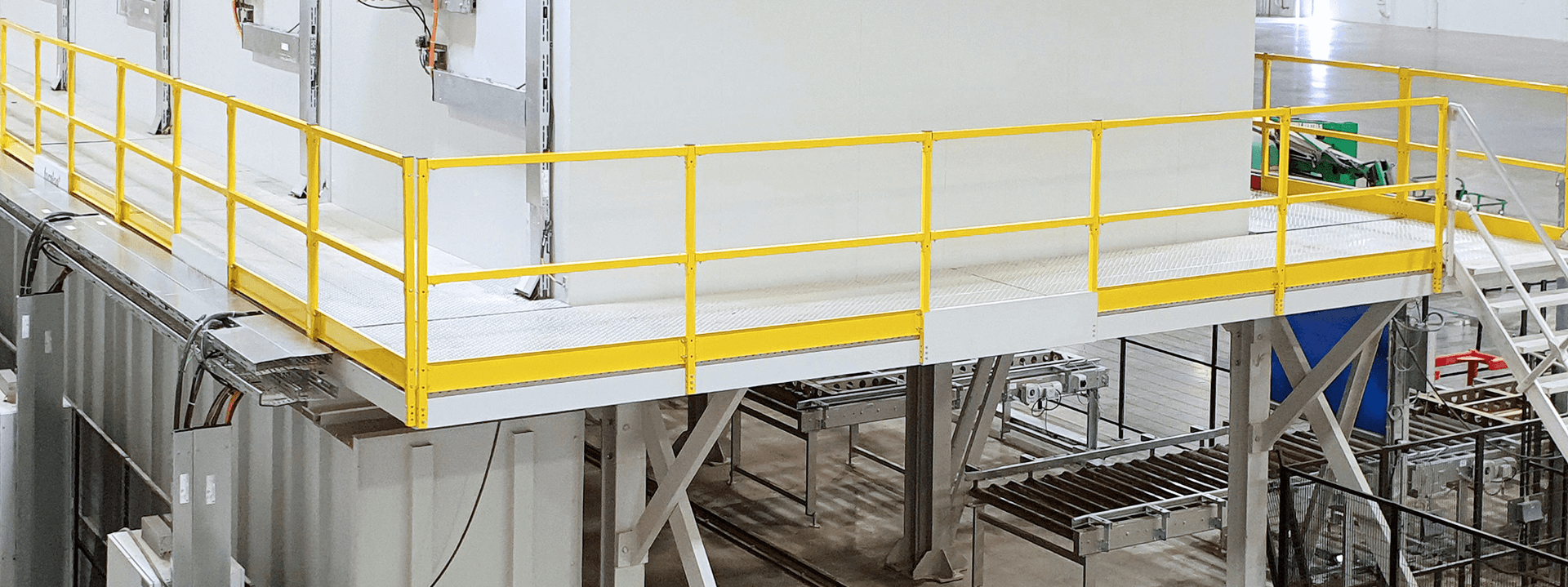

The Protection for walkways and elevated areas

BodyGuard is the Fall Prevention Guardrail for the delimitation of ground walkways or elevated areas. Made of uprights and horizontal beams and locked in place by self-centering brackets, BodyGuard can be anchored to the floor with a baseplate or to the walkway with bolts.

  • Protezioni Perimetrali Satech - BodyGuard, la Protezione per camminamenti e aree sopraelevate

Practical

The BodyGuard Fall Prevention Guardrail is easy to assemble thanks to its self-centering modular components locking in place.

Resistant

Its modular structure (horizontal beams and a kick plate) makes BodyGuard a compact and durable solution for the safety of operators.

Compliant

BodyGuard is designed and manufactured in compliance with EN ISO 14122-3 and meets Risk Assessment safety requirements.

BodyGuard Fall Prevention Guardrail

Key System features

1000
1500 mm
Kickplate clearance from ground- EN ISO 14122-3 10
Protection height 1100 mm
495 mm EN ISO 14122-3
373 mm EN ISO 14122-3
BodyGuard Fall Prevention Guardrail

Tubes

Section
mm
40
TYPES
Uprights and horizontal beams
ASSEMBLY
Linear or angular via self-centering brackets
HEIGHTS (mm)
1100
WIDTHS (mm)
10001500

Colors

RAL COLORS
RAL 1021 CustomGuard Colors
COATING
Powder (indoor use only)

Safe and stable - two anchoring options

Depending on the area that needs protection, BodyGuard can be anchored to the floor with front bolts or with baseplates bolted to the ground.

Protezioni Perimetrali Satech - Ancoraggio a passerella della Protezione Anticaduta Uomo BodyGuard

Walkway anchoring

Protezioni Perimetrali Satech - Ancoraggio a terra Protezione Anticaduta Uomo BodyGuard

Floor anchoring

Ease of Assembly

BodyGuard allows both linear and angular assembly with the same components. The self-centering brackets guide the horizontal beams in place, while Nuts and Bolts lock them to the uprights.

Protezioni Perimetrali Satech - Montaggio lineare della Protezione Anticaduta Uomo BodyGuard

Linear assembly

Protezioni Perimetrali Satech - Montaggio angolare della Protezione Anticaduta Uomo BodyGuard

Angular assembly

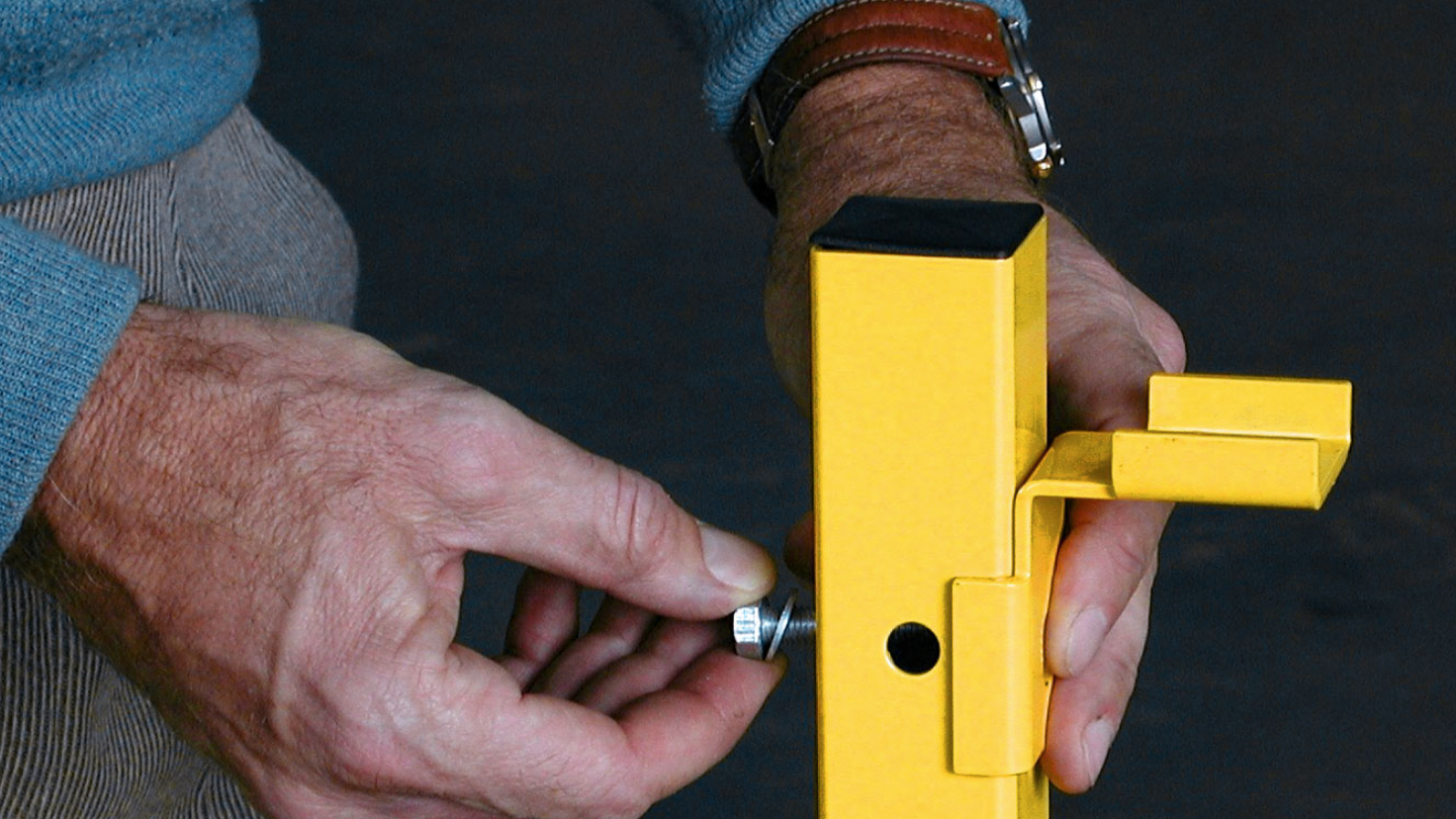

Great time saving

The reduced number of components and the self-centering brackets
ensure quick assembly, saving you valuable time.

Protezioni Perimetrali Satech - Risparmio di tempo Protezione Anticaduta Uomo BodyGuard

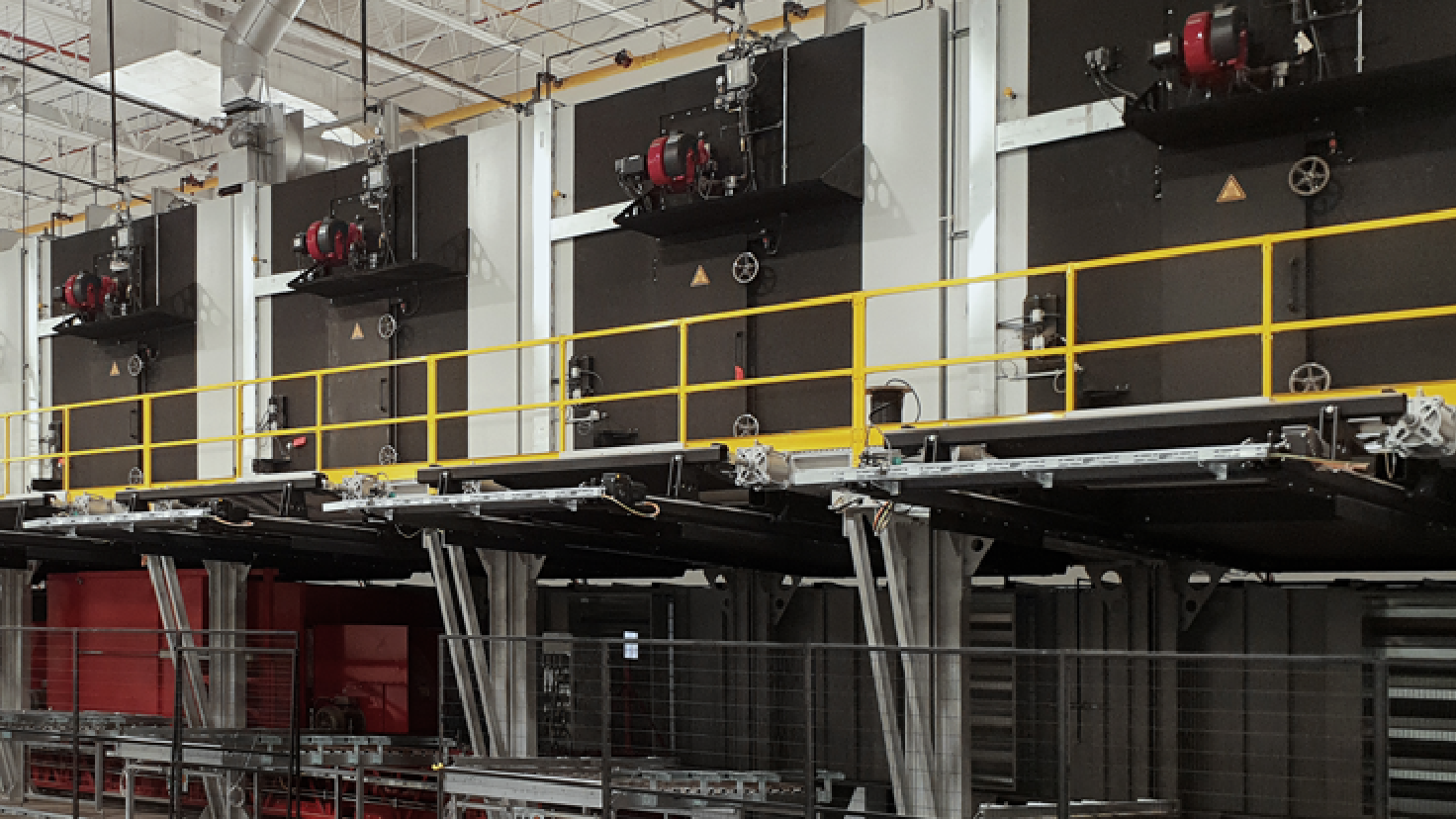

Complete versatility

In conjunction with the two assembly options, the modular beams-and-brackets design makes BodyGuard suitable to delimit all types of walkways and elevated areas - even when it comes to large surfaces.

Protezioni Perimetrali Satech - Versatilità della Protezione Anticaduta Uomo BodyGuard

BodyGuard - Product Video

Discover how to assemble our BodyGuard Fall Prevention Guardrail in this video.

Do you need an offer?

Drop us a line to receive a free, no-obligation quote.

GET A FREE OFFER

Global distribution and offer availability

Satech Solutions are distributed in over 40 Countries worldwide, locally.

Systems composition, product availability and technical specifications might vary depending on your geographic area of interest.

Your local Satech Representative is available to help you choose and to provide you with the latest information.
