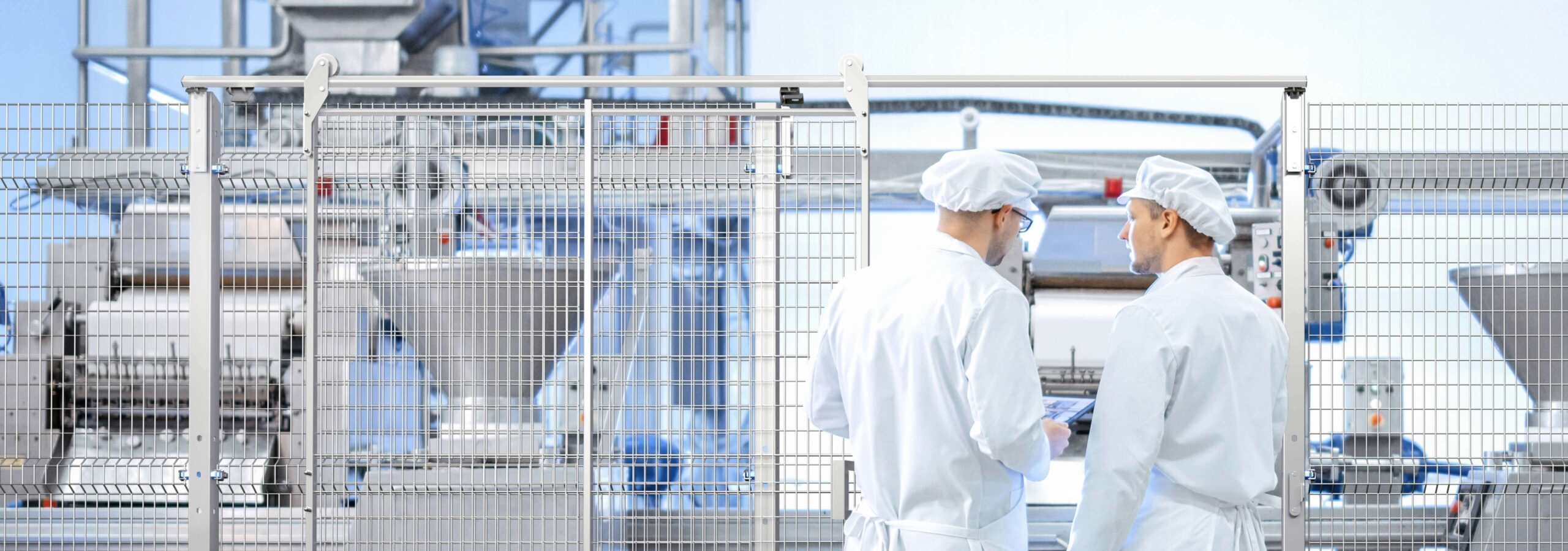

BlueGuard

hygienic fencing
Slide background
Slide background
Slide background
Slide background
Slide background

Machines safety panel
Modular Machine Guards
Maximum safety and hygiene.

BlueGuard modular system is the result of Satech’s twenty-year experience and combines safety, flexibility and compliance with the high hygiene standards required by the agro-food, chemical and pharmaceutical markets.

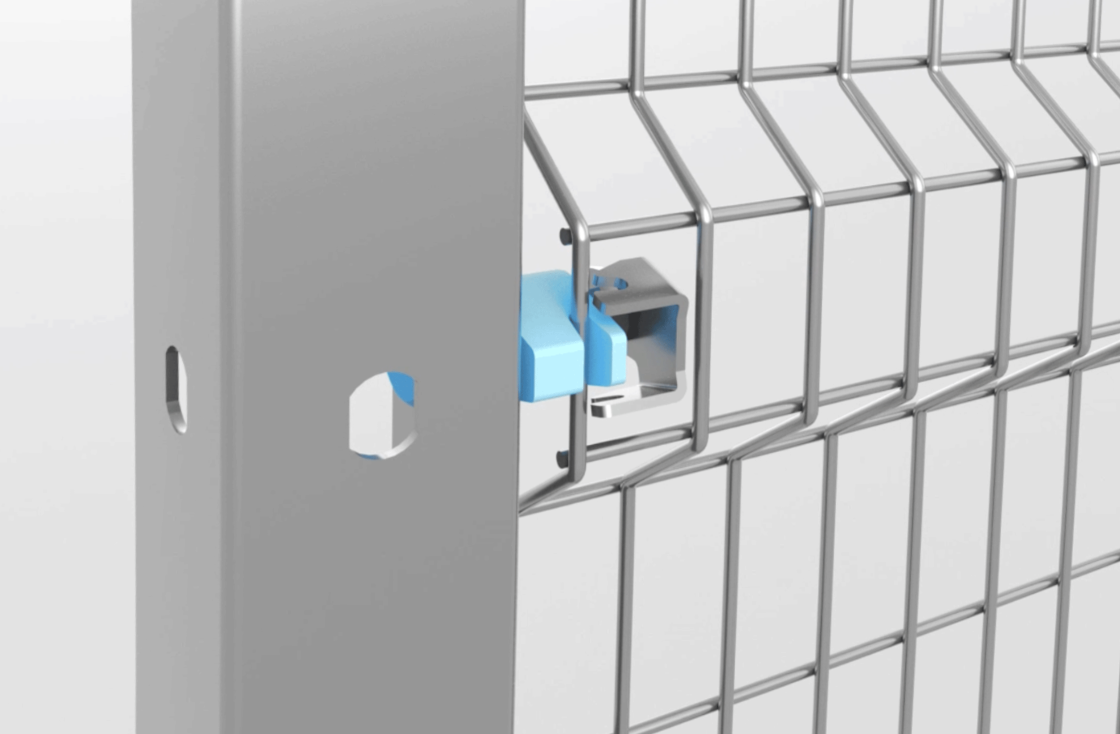

The frameless 4 mm welded wire panel strengthened by transversal folds is made of AISI 304 stainless steel finished by passivation. The panel is fixed to inspectable U-section posts by means of high-resistant fast captive connections made of technopolymer and stainless steel.

BlueGuard is quick to assemble: a single type of post for linear, angular and door mounting to reduce setup time. Wide ribs facilitate the use of electric screwdriver, while the frameless construction allows panel sizes to be adjusted speedily on site.
HygienicHygienic Design Modular Guard - in 4 steps
Protezioni perimetrali macchine
  • Durable
    • Resistant to high-pressure water jets
    • Resistant to corrosion
    Easily maintenable
    • Fully inspectable
    • Prevents accumulation of dirt
    • Allows cleaning of surrounding areas
  • Safe
    • ecolab Tested and Certified
    • Detergent and disinfectant resistance tests for 2000 washing cycles (6 years of use) on:
      • TOPAZ AC5
      • P3-TOPAX 990
      • TOPACTIVE DES
      • P3-TOPAX 66
      • TOPAZ HD3
      • TOPAZ MD3
Robust
Fast and efficient installation is achieved by simple, easy-to-use connectors which fit securely to the uprights, while the layout can be easily configured to suit the machinery and available space
  • Passivated AISI 304 Stainless Steel and technopolymer to ensure great resistance to high-pressure water jets

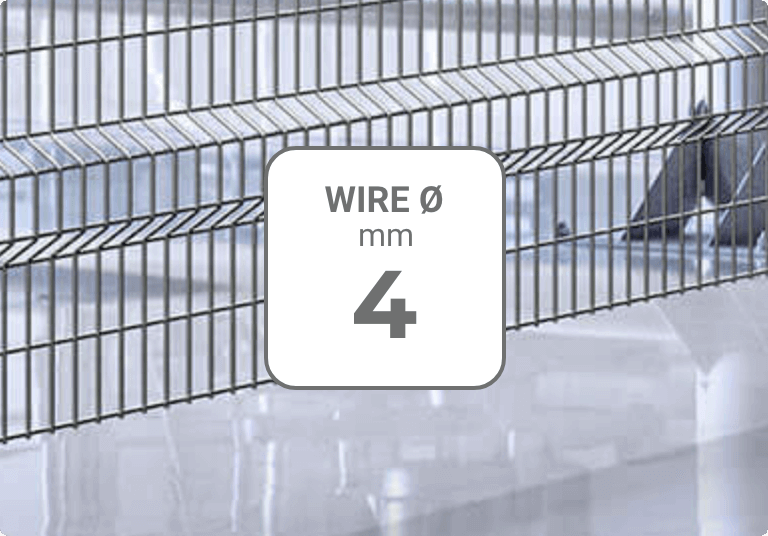

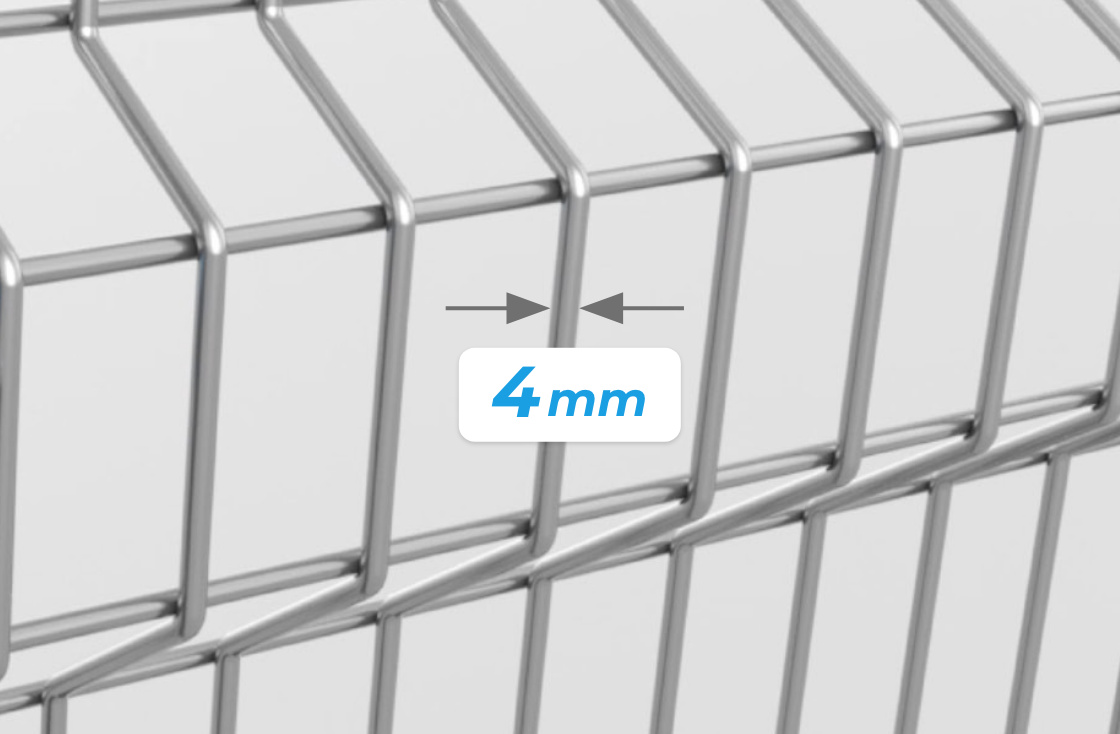

  • Wire – 4 mm drawn steel, high tensile strength mesh, with reinforcement ribs
  • Greater stability is achieved by connecting the panels to the uprights at the position of the reinforcement ribs
Practical

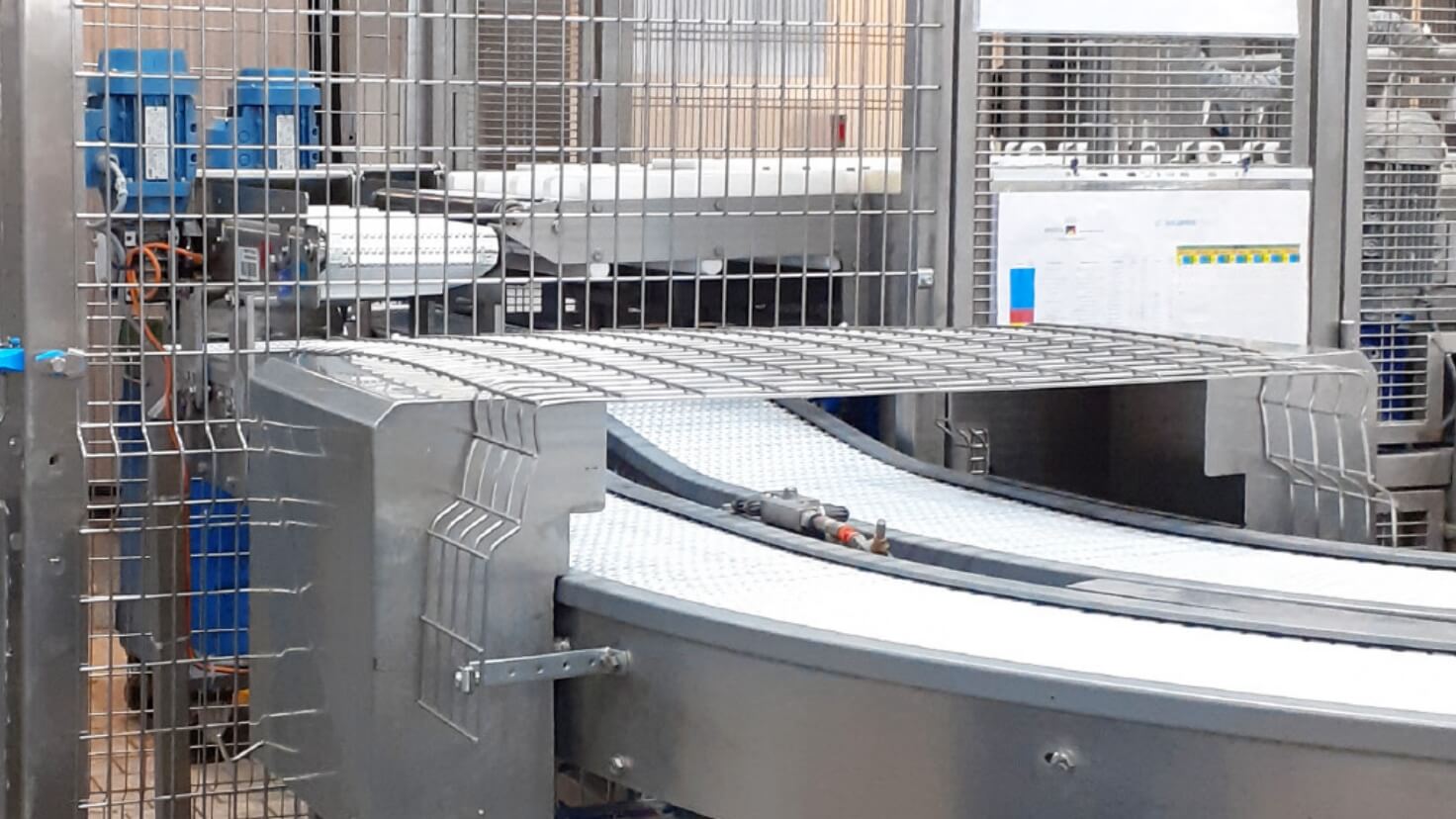

  • FULLY ADAPTABLEFrameless construction allows panel sizes to be adjusted speedily on site
  • CAPTIVE RETAINED FASTENINGS2-components preassembled quick Captive Retained fasteners

    EN ISO 14120 and 2006/42/EC

Technical Specifications
Panels

Mesh: 32 x 68 x 4 mm
Height: 2080 mm
Bases: 484, 992, 1472, 1988 mm
Posts

Universal (for linear, corner or end mount) draining 60 x 60 mm U-section

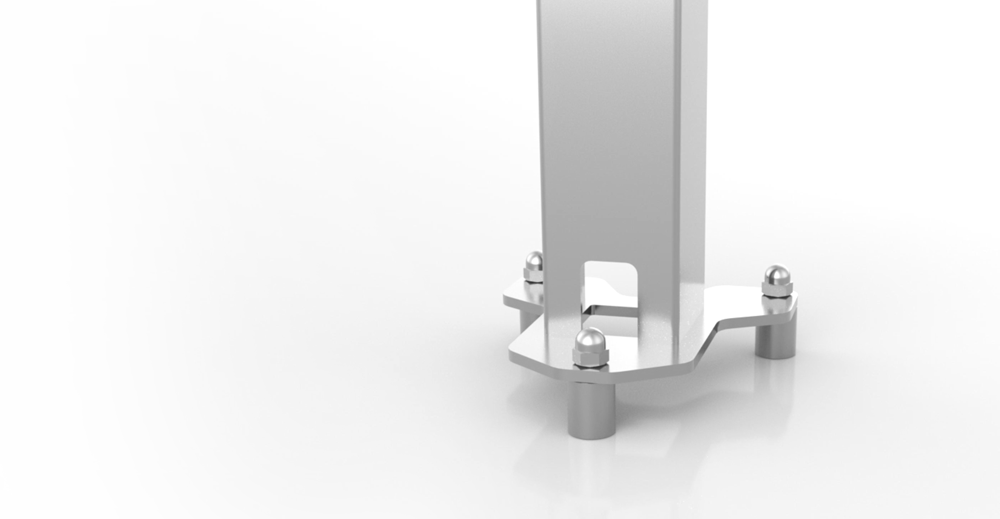

Baseplate: continuous TIG welded with 4 anchoring points

Height: 2240 mm
Overall protection height: 2220 mm
Protezioni perimetrali macchineMaterials - Panels and Posts: Passivated high quality Stainless STEEL AISI 304

Materials - Technopolymer:Food contact DOMAMID® 6G30FC
Safety - EN ISO 13857
140 mm ground clearance

EN ISO 13857-4.3
28x64 mm slot opening allows to install the fence 200 mm from danger zone

EN ISO 13857-4.2
Regulation Compliance
BlueGuard is constructed in compliance with the following EUROPEAN and INTERNATIONAL STANDARDS: ISO 14120; EN ISO 12100; EN ISO 13857; EN ISO 10218-2; 2006/42/EC Machinery Directive; EN 1672-2; EN ISO 14159
Door solutions
  • SINGLE HINGED DOOR

    BLUEGUARD SINGLE HINGED DOOR
    SIMPLE, SAFE AND SOLID
    • Opening 1000 mm
    • Framed panel with central reinforcements
    • 20 x 30 mm upper bar
    • 4 + 6 mm welded wire flat mesh
    • 180° aperture
    • One panel for both Left and Right opening
    • Hygienic design with inclined surfaces
    • Supplied with Magnet Lock as standard

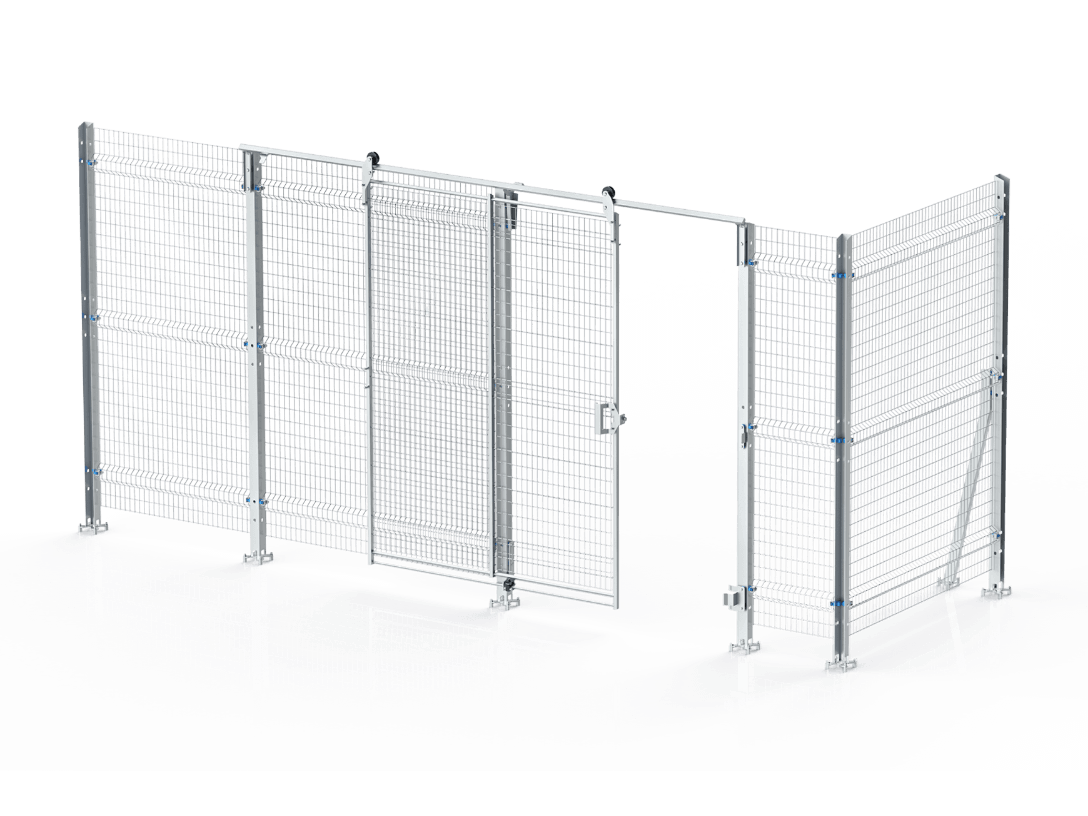

  • SINGLE UPPER GUIDE SLIDING DOOR

    BLUEGUARD SINGLE UPPER GUIDE SLIDING DOOR
    LARGER OPENING, GREAT STABILITY
    • Opening 1500 mm
    • Framed panel with central reinforcements
    • 20 x 30 mm upper bar
    • 4 + 6 mm welded wire flat mesh
    • One panel for both Left and Right opening
    • Hygienic design with inclined surfaces
    • Low friction upper trolley
    • Supplied with Magnet Lock as standard

BlueGuard system can be completed with the following accessories:

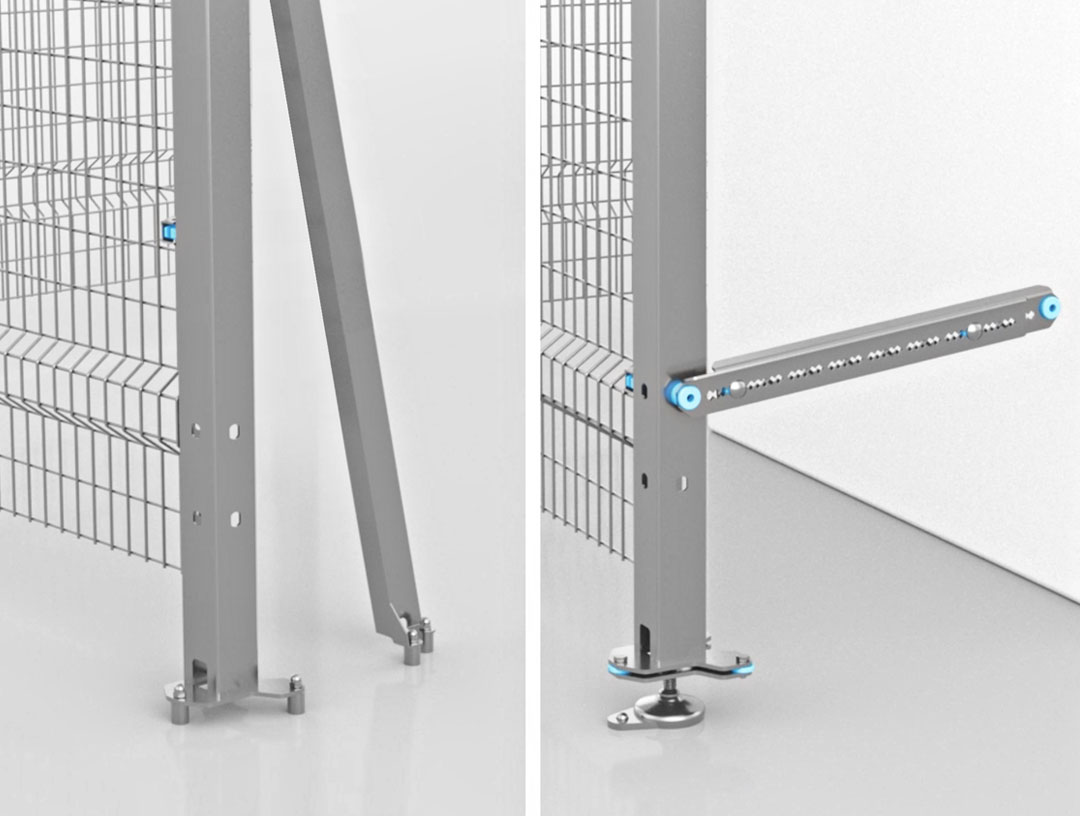

BlueGuard Wind Bracing Wind Bracing

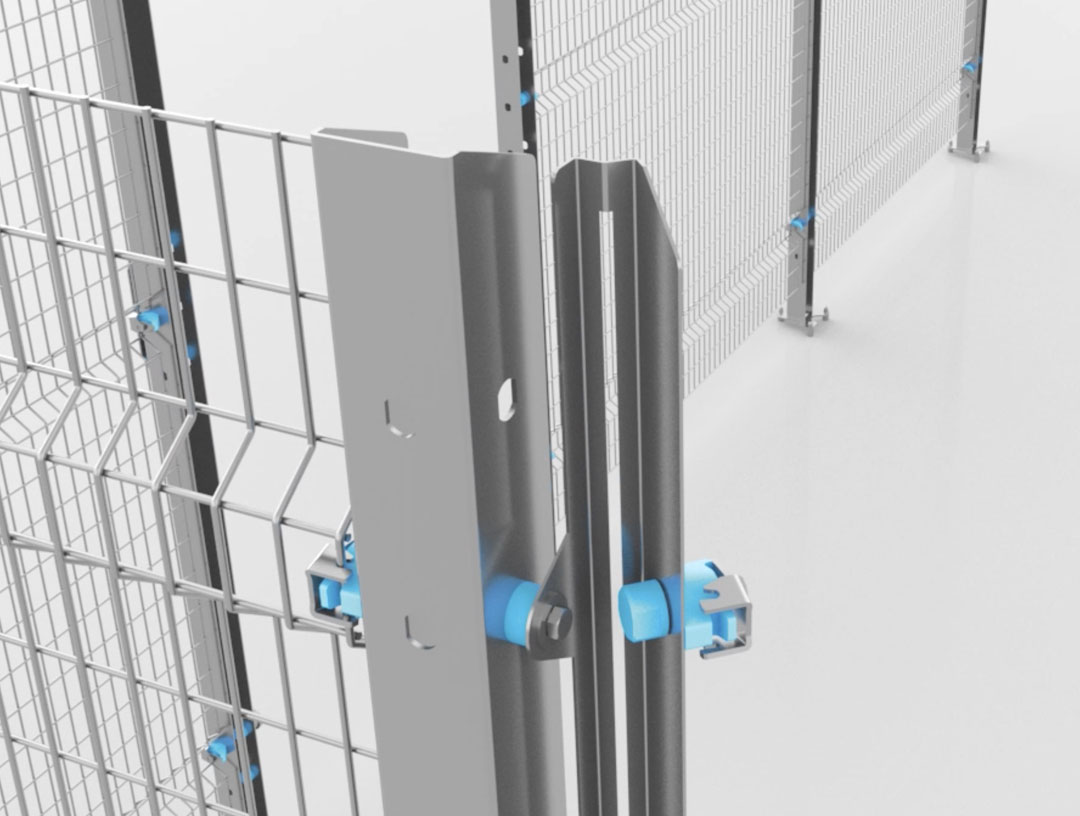

BlueGuard Variable angle kit Variable angle kit

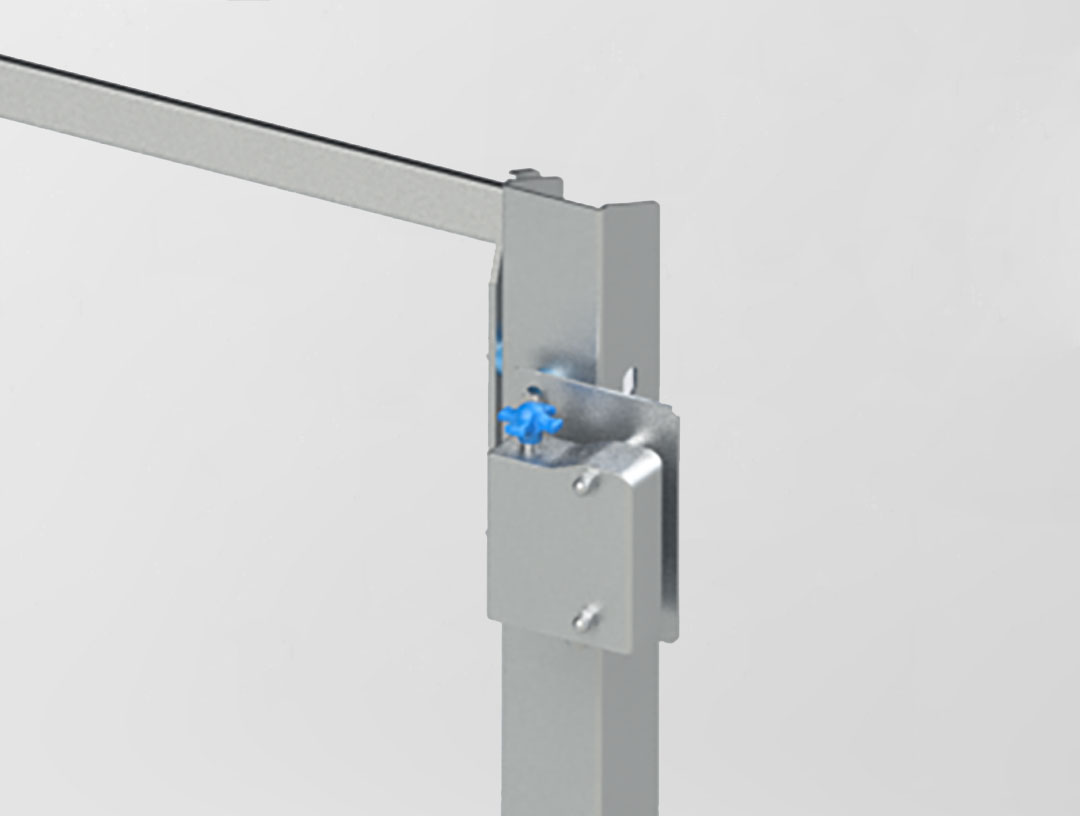

BlueGuard Safety switch brackets Safety switch brackets
