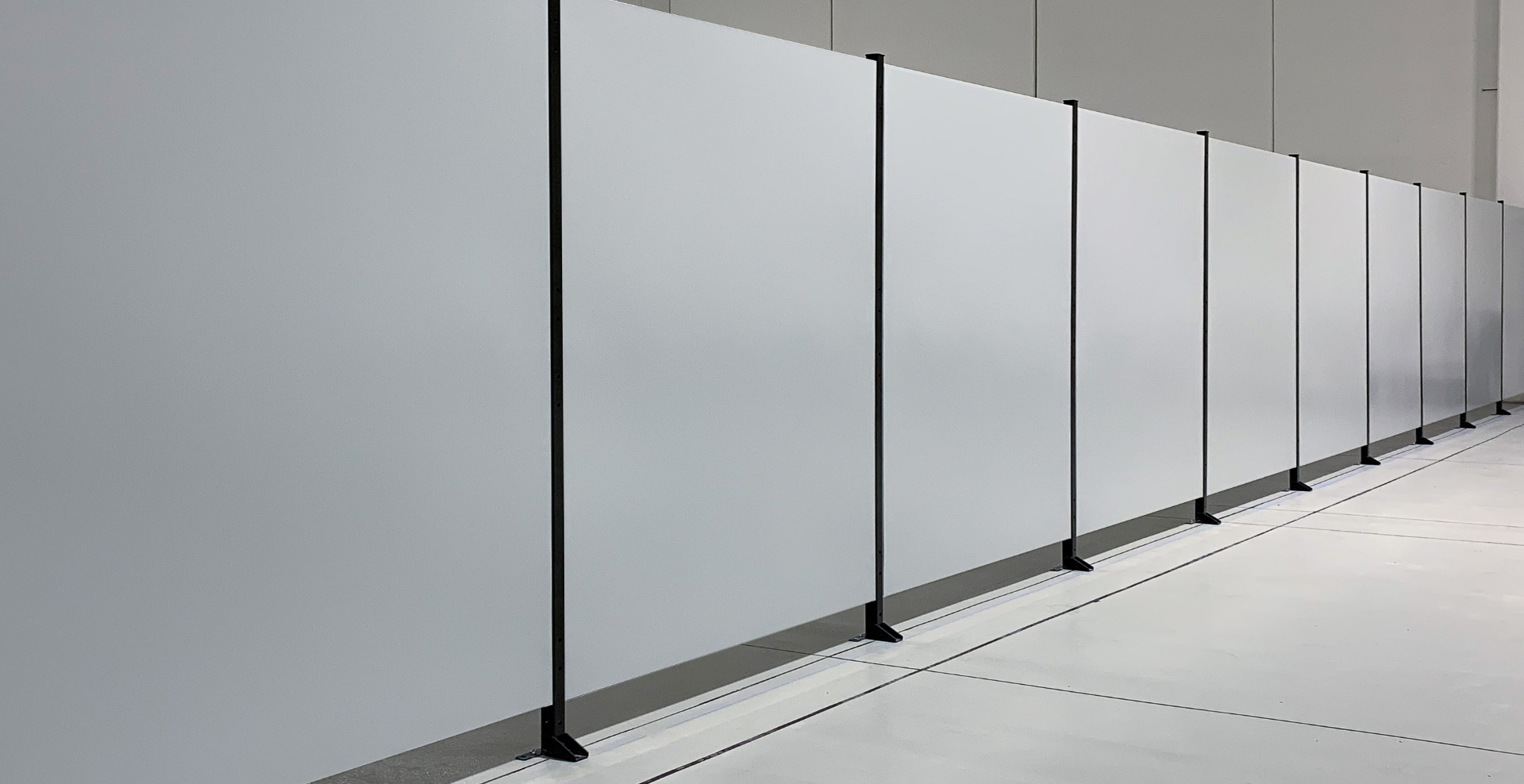

Protezioni Perimetrali Satech - Pannelli Modulari

Framed Perimeter Guards

Modular Panels

Sheet metal, transparent sheet or mixed?

In addition to mesh panels, our framed Systems can be built with modular panels in different materials.
All of them are robust, easy to assemble, fully compatible with traditional assembly systems and customizable according to your needs.

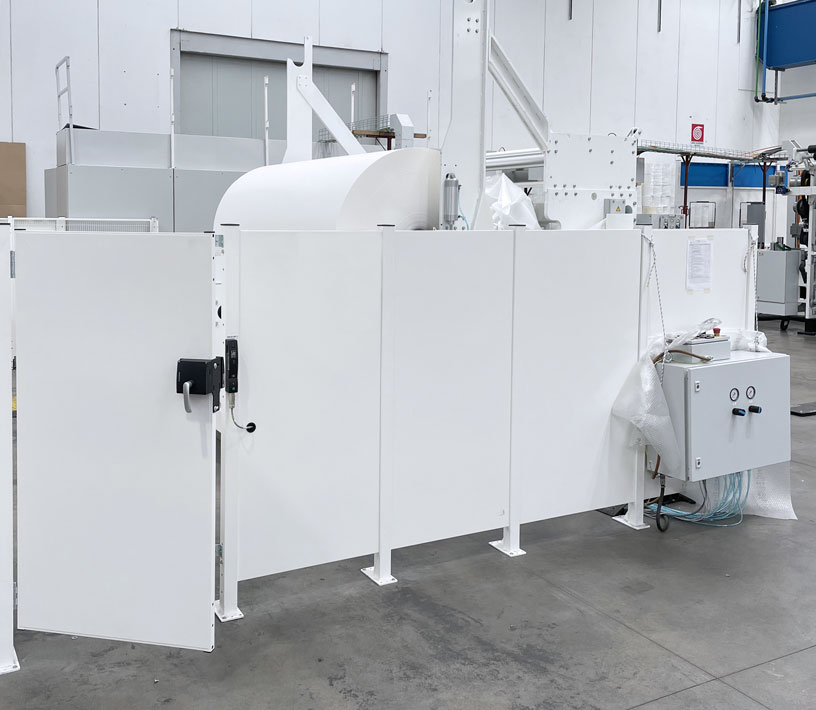

  • Protezioni Perimetrali Satech - Porta a battente con Pannelli Modulari FullSteel

FullSteel

Maximum Robustness and Privacy

6
STANDARD NON-STOCK
Min. order preparation time: 6 business days

FullSteel is the new line of folded sheet metal panels. Suitable to protect from the ejection of scraps or for the partitioning of restricted areas, it is available with a polycarbonate viewing port as well as a dedicated viewing port for welding cells.

ASSEMBLY OPTIONS
"Impact” Assembly - Captive Retained Screws
Tested for up to
Modular Panels
2220 J
MATERIALS
Sheet metal1,2 mm thickness
Transparent sheet4 mm thickness
EN ISO 25980 Transparent sheet3 mm thickness

Transparent Sheet

Maximum Visibility

6
STANDARD NON-STOCK
Min. order preparation time: 6 business days

Polycarbonate panels provide maximum visibility of the protected areas, thus allowing the inspection of processes.

ASSEMBLY OPTIONS
“Easy” assembly -Quick Clamp
“Impact” assembly -Captive Nuts and Bolts
CAN BE MADE WITH
FRAME
mm
20
FRAME
mm
30
MATERIALS
Transparent sheet4 mm thickness

Mixed Panels

Maximum Versatility

6
STANDARD NON-STOCK
Min. order preparation time: 6 business days

Mixed material panels combine the advantages of both materials. The sheet metal + mesh panel, for example, protects from the ejection of scraps in the lower part while ensuring full visibility of production processes at the top.

ASSEMBLY OPTIONS
“Easy” assembly -Quick Clamp
“Impact” assembly -Captive Nuts and Bolts
CAN BE MADE WITH
FRAME
mm
20
FRAME
mm
30
MATERIALS
Steel wire mesh3 mm thickness
Sheet metal1,2 mm thickness
Transparent sheet4 mm thickness

CustomGuard Panels

Upon request, we design and manufacture panels with personalized dimensions or with profile shapes and cutout shapes to adapt the Guards to protruding parts of machinery, such as conveyors for loading or unloading, control panels, electrical and hydraulic lines.

DISCOVER CUSTOMGUARD

Other Products and Complements for Perimeter Guarding Systems

Standard Doors|h3|

Standard Doors

Our line of doors designed for the passage of people, pallet trucks, forklifts or overhead cranes.

LEARN MORE
Locking%20Systems|h3|

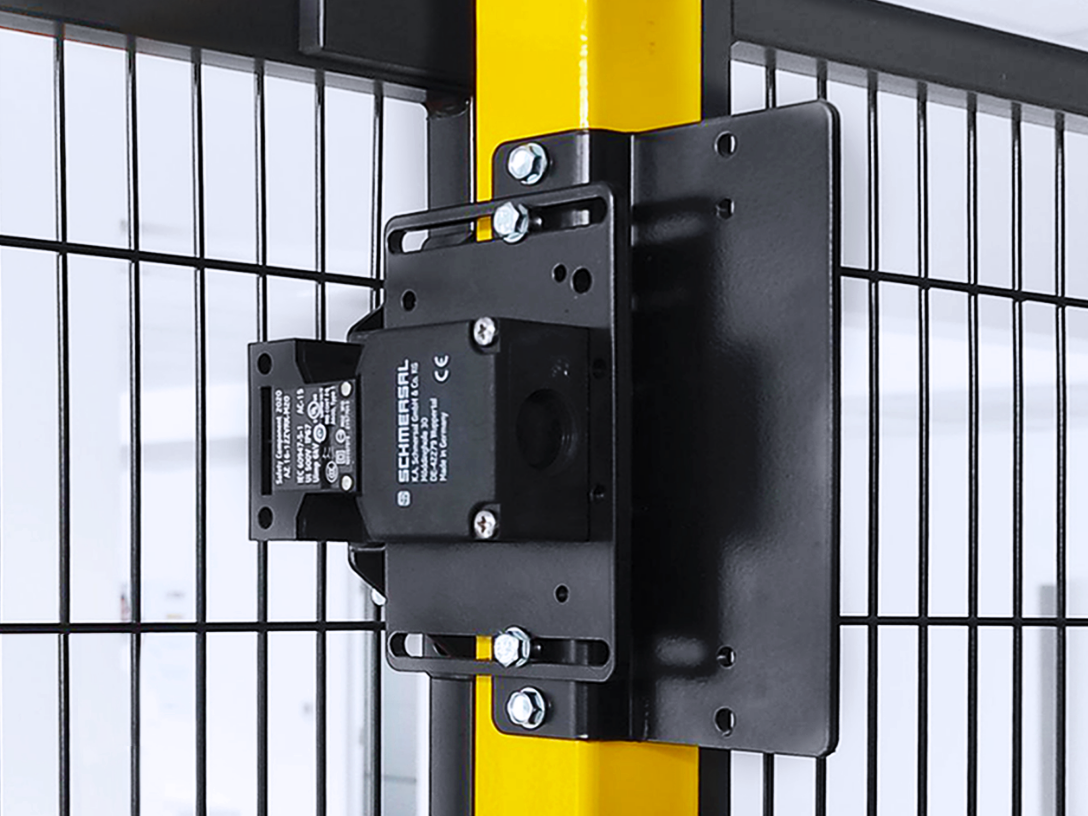

Locking Systems

We offer a range of locks suitable for all Performance Levels required in security systems.

LEARN MORE
Accessories%20%26%20Brackets|h3|

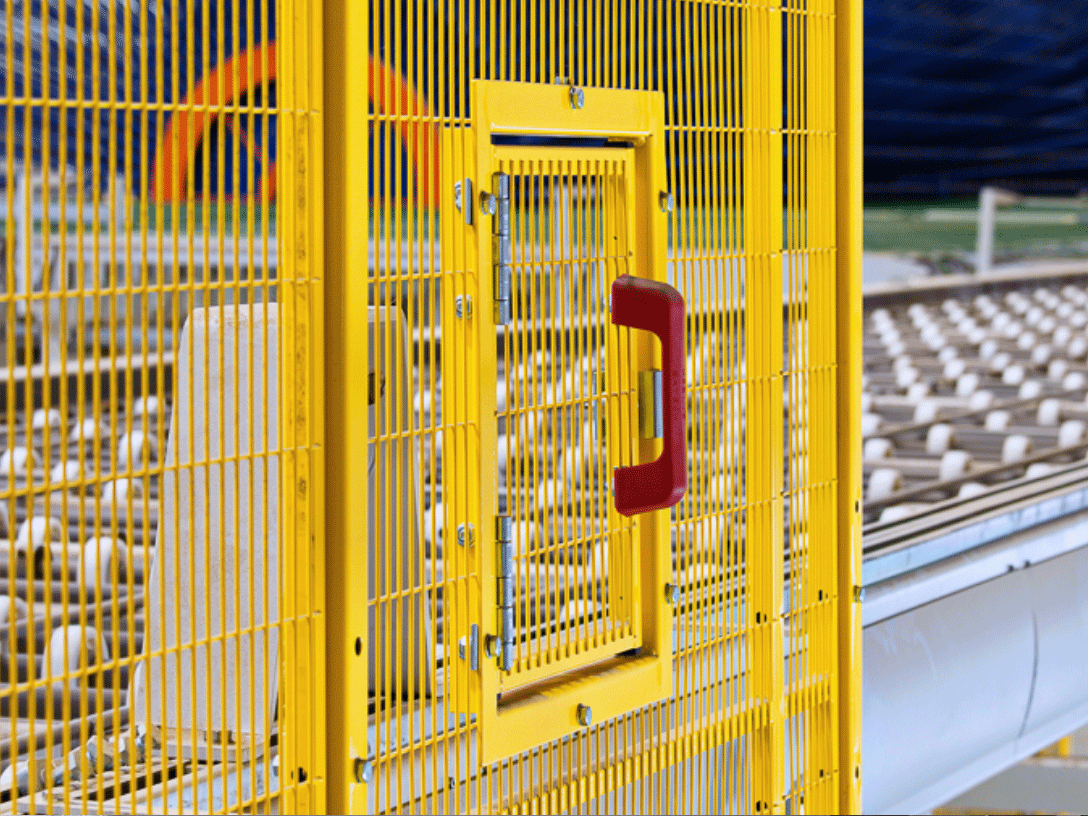

Accessories & Brackets

Mounting Complements and brackets for the full customization of your Perimeter Safety Guards.

LEARN MORE

Do you need an offer?

Drop us a line to receive a free, no-obligation quote.

GET A FREE OFFER

Global distribution and offer availability

Satech Solutions are distributed in over 40 Countries worldwide, locally.

Systems composition, product availability and technical specifications might vary depending on your geographic area of interest.

Your local Satech Representative is available to help you choose and to provide you with the latest information.
