The best-selling framed Perimeter Guard.
BASIC is an EN ISO 14120-compliant Perimeter Guarding System that's extremely versatile. Available with two assembly options - Captive Nuts and Bolts (for impacts up to 1608 J) and Quick Clamp (to reduce assembly time)- as well as two baseplates options for a great range of applications.
BASIC Series Perimeter Guard
Key System features
Panels
- MESH (mm)
- 20 x 100 x 3
- MESH (mm)
- 20 x 100 x 3
- MESH SLOT (mm)
- 17 x 97
- WIDTHS (mm)
- 200300700800100012001500
7 STANDARD WIDTHS, INFINITE POSSIBILITIES
The combination of our 7 standard panels joined together allows to create all the intermediate widths in 100 mm increments.
- HEIGHTS (mm)
- 150020802480
Posts
- BASEPLATES
- to assemble, with 3 or 4 anchoring points or welded (optional)
- HEIGHTS (mm)
- 166022402640
Colors
- RAL COLORS
- RAL 9005 RAL 1021 RAL 7035 Colori CustomGuard
- COATING
- Powder (for indoor use only)
The Satech Framed Panel
Safe, practical, resistant
-
Easy to handle
With a structure that’s lightweight yet robust, the Satech framed panel can be easily handled by just one person.
-
Ready to use
The frame comes pre-drilled to allow assembly with Nuts and Bolts and the installation of brackets, locks and accessories.
-

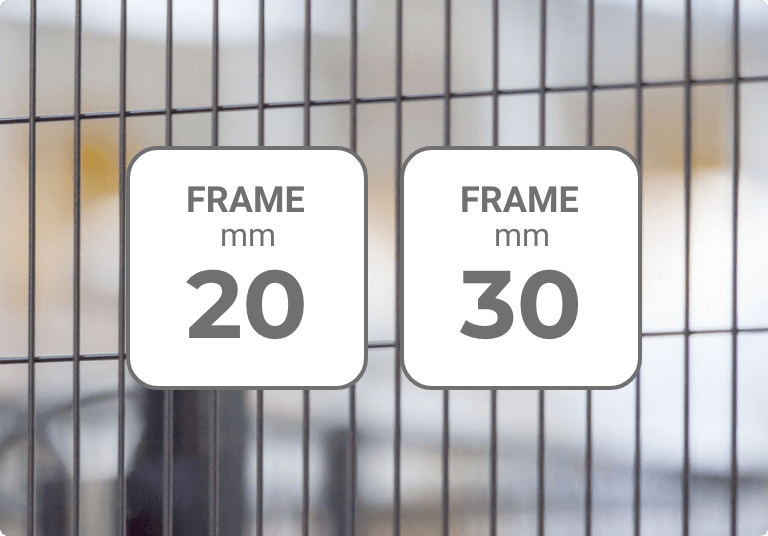

Safe and resistant
20 or 30 mm frame?
The 20 or 30 mm square section tubes and 3 mm wire mesh make the Satech panel rigid and resistant, while welds at wires intersection prevent the risk of resonance.
-
Anti-climbing
EN ISO 14120-5.18
The horizontal wires welded on the inside prevent climbing.
-
Visibility
EN ISO 14120-5.9
The vertical mesh shape ensures excellent machinery visibility.
-
Less distance, more space saved
EN ISO 13857
The 17x97 mm mesh slot allows to install the Guard only 120 mm from hazard (EN ISO 13857), reducing the amount of space occupied by the safety perimeter.
Maximum resistance to impacts or speed of assembly?
Captive Nuts and Bolts are the right choice for maximum impact resistance, while the Quick Clamp is perfect to reduce assembly time.
Adjustable baseplate or integrated into the post?
The baseplate to assemble (standard) can be adjusted in height to compensate for uneven floors, while the welded baseplate (optional) reduces assembly time even more.
|
|
|
|
|
||
|---|---|---|---|---|---|---|
| Machine Guard - Standard heights (mm) |
1640, 2220, 2620 | 1640, 2220, 2620, 3140 | 1640, 2220, 2620 | 1640, 2220, 2630 | 2220 | |
| Frame section (mm) | 20 | 20 / 30 (HEAVY) | 20 / 30 | Frameless | Frameless | |
| Post section (mm) | 40 | 60 | - | 50 | 60 | |
| Assembly system | Nuts and Bolts or Patented Quick Clamp | Patented Quick Clamp or Captive Nuts and Bolts | Upper Connections + Special Baseplates | Techno-polymer fastenings | Food techno-polymer fastenings | |
| Price range | €€ | €€€ | € / €€ | €€€ | €€€€ | |
| Speed of assembly | ||||||
| Mesh (mm) | 20 x 100 x 3 | 20 x 100 x 3 | 20 x 100 x 3 | 32 x 68 x 4 | 32 x 68 x 4 | |
| Tested resistance to Impact (max) |
1608 J When assembled with Nuts and Bolts |
1608 J When assembled with Nuts and Bolts |
115 J* / 390 J *Standard value required by EN ISO Regulations |
1608 J | 500 J | |
| Min. Distance from hazard (mm) |
120 (EN ISO 13857) |
120 (EN ISO 13857) |
120 (EN ISO 13857) |
200 (EN ISO 13857) |
200 (EN ISO 13857) |
|
| Non-mesh panel options(FullSteel, transparente sheet, mixed) | - | - |
Perimeter Guard Complements
BASIC can be completed with a wide range of high-quality doors, panels, locking systems and accessories.
Standard Doors
Our line of doors designed for the passage of people, pallet trucks, forklifts or overhead cranes.
Discover our doors
Modular Panels
In addition to mesh panels, our framed Systems can be built with panels in different materials.
Discover our panels
Locking Systems
We offer a range of locks suitable for all Performance Levels required in security systems.
Discover our locking systems
Accessories and Brackets
Mounting Complements and Brackets for the full customization of your Perimeter Guard.
Discover our accessories
