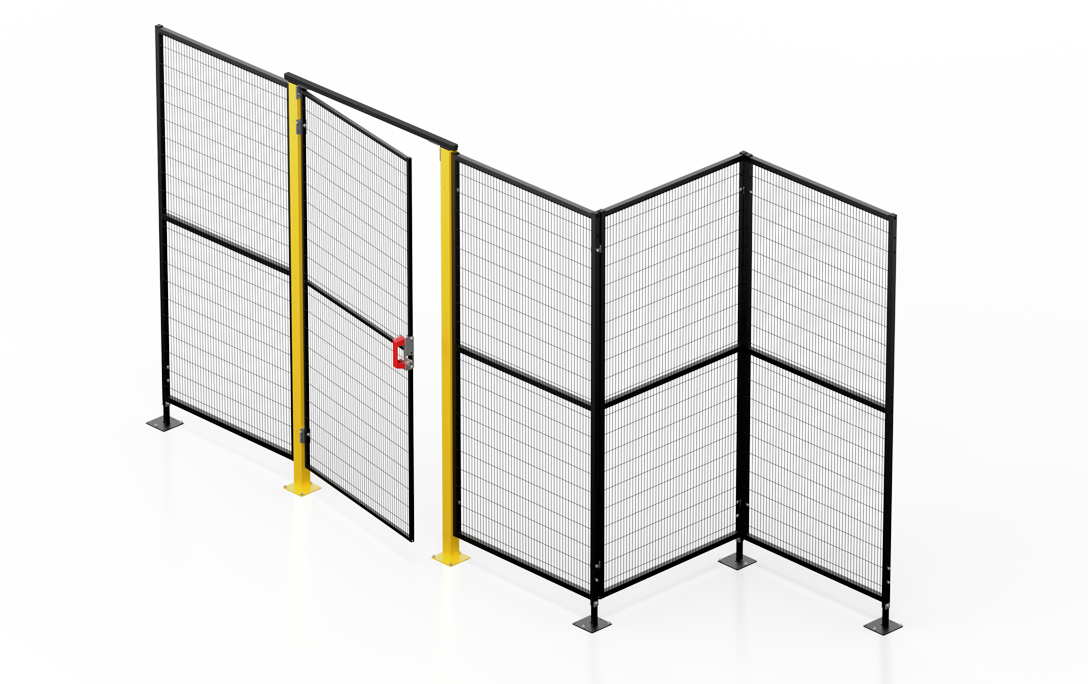

FastGuard Perimeter Safety Fence
Key System features
Panels
- MESH (mm)
- 20 x 100 x 3
- MESH SLOT (mm)
- 17 x 97
- WIDTHS (mm)
- 200300700800100012001500
7 STANDARD WIDTHS, INFINITE POSSIBILITIES
The combination of our 7 standard panels joined together allows to create all the intermediate widths in 100 mm increments.
- HEIGHTS (mm)
- 150020802480
Baseplates
- TYPES
- Linear and terminal
- SIZE (mm)
- 100 X 200 X 8 welded, with 4 anchoring points
Colors
- RAL COLORS
- RAL 9005 RAL 1021 RAL 7035 Colori CustomGuard
- COATING
- Powder (for indoor use only)
The Satech Framed Panel
Safe, practical, resistant
-
Easy to handle
With a structure that’s lightweight yet robust, the Satech framed panel can be easily handled by just one person.
-
Ready to use
The frame comes pre-drilled to allow assembly with Nuts and Bolts and the installation of brackets, locks and accessories.
-
Safe and resistant

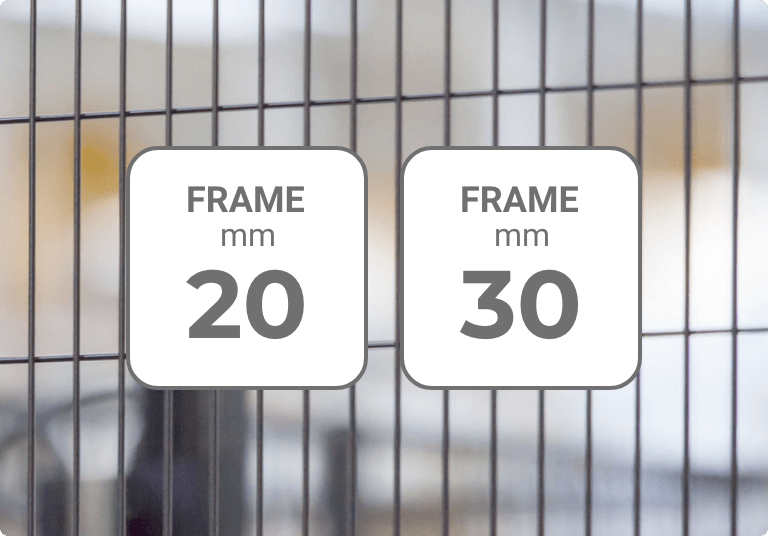

20 or 30 mm frame?
The 20 or 30 mm square section tubes and 3 mm wire mesh make the Satech panel rigid and resistant, while welds at wires intersection prevent the risk of resonance.
-
Anti-climbing
EN ISO 14120-5.18
The horizontal wires welded on the inside prevent climbing.
-
Visibility
EN ISO 14120-5.9
The vertical mesh shape ensures excellent machinery visibility.
-
Less distance, more space saved
EN ISO 13857
The 17x97 mm mesh slot allows to install the Guard only 120 mm from hazard (EN ISO 13857), reducing the amount of space occupied by the safety perimeter.
Great time saving, maximum effectiveness
FastGuard saves up to 70% assembly time while ensuring a minimum resistance to impacts of 115 J (even for the FastGuard 20 version), which is the reference value required by International Standards.
Simplicity and stability

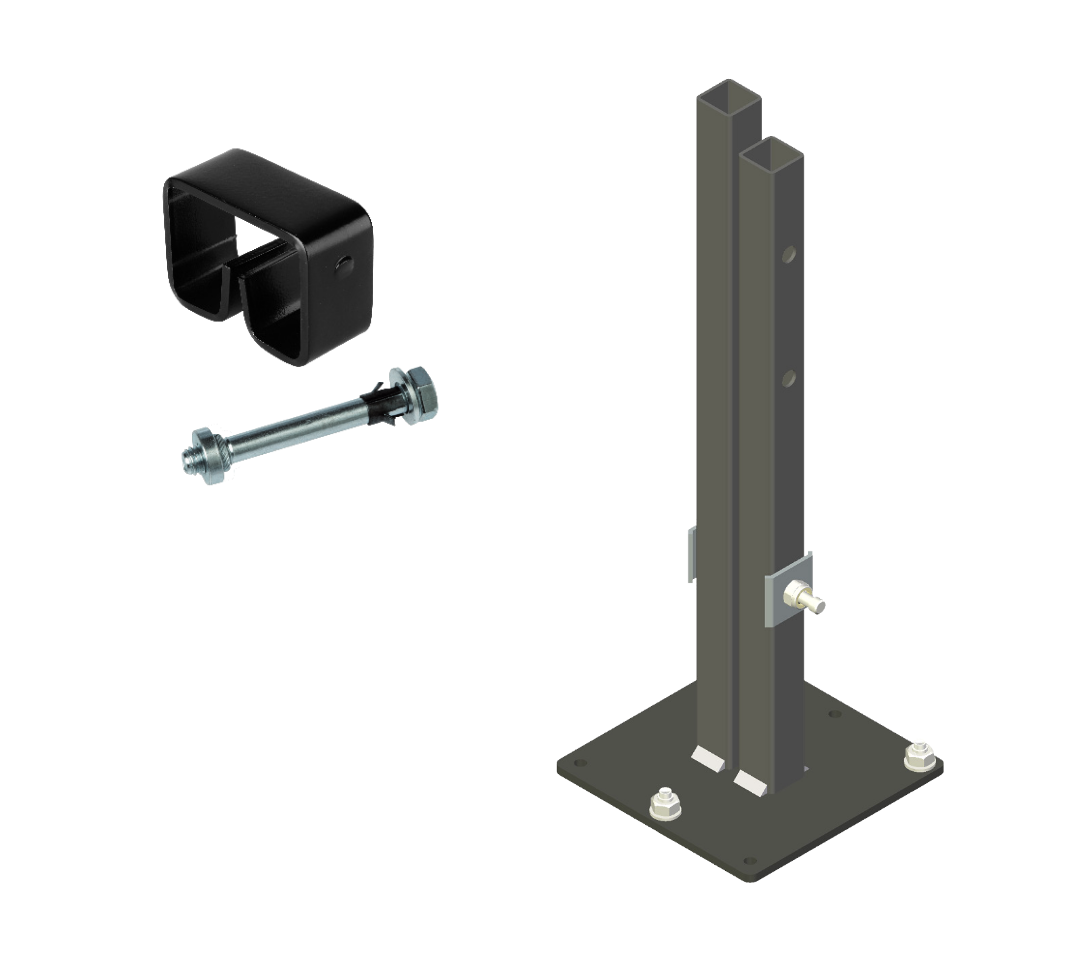

Special baseplates with locking forks connect modular panels in the lower part. For additional stability, the upper part is connected either by an elastic shaped joint or by captive retained Nuts and Bolts.
Assembly in 3 easy steps
Panels are supported and kept in place by baseplates, while an upper connection keeps them aligned. All you'll have to do is:
-
1Place baseplates on the ground
-
2Insert the panel from above
-
3Tighten the captive built-in fastenings
Practical, even with a single operator
Thanks to its quick fasteners, the installation of FastGuard Safety Fences
can be carried out by only one operator.
FastGuard is also available with 20 mm frame (FastGuard 20)
|
|
|
|
|
||
|---|---|---|---|---|---|---|
| Machine Guard - Standard heights (mm) |
1640, 2220, 2620 | 1640, 2220, 2620, 3140 | 1640, 2220, 2620 | 1640, 2220, 2630 | 2220 | |
| Frame section (mm) | 20 | 20 / 30 (HEAVY) | 20 / 30 | Frameless | Frameless | |
| Post section (mm) | 40 | 60 | - | 50 | 60 | |
| Assembly system | Nuts and Bolts or Patented Quick Clamp | Patented Quick Clamp or Captive Nuts and Bolts | Upper Connections + Special Baseplates | Techno-polymer fastenings | Food techno-polymer fastenings | |
| Price range | €€ | €€€ | € / €€ | €€€ | €€€€ | |
| Speed of assembly | ||||||
| Mesh (mm) | 20 x 100 x 3 | 20 x 100 x 3 | 20 x 100 x 3 | 32 x 68 x 4 | 32 x 68 x 4 | |
| Tested resistance to Impact (max) |
1608 J When assembled with Nuts and Bolts |
1608 J When assembled with Nuts and Bolts |
115 J* / 390 J *Standard value required by EN ISO Regulations |
1608 J | 500 J | |
| Min. Distance from hazard (mm) |
120 (EN ISO 13857) |
120 (EN ISO 13857) |
120 (EN ISO 13857) |
200 (EN ISO 13857) |
200 (EN ISO 13857) |
|
| Non-mesh panel options(FullSteel, transparente sheet, mixed) | - | - |
FastGuard Perimeter Safety Fence
Resources
FastGuard - Product Video
Discover how to assemble our FastGuard Perimeter Safety Fence in this video.
FastGuard - Assembly Instructions
DownloadPerimeter Safety Fence Complements
FastGuard can be completed with a wide range of high-quality doors, panels, locking systems and accessories.
Standard Doors
Our line of doors designed for the passage of people, pallet trucks, forklifts or overhead cranes.
DISCOVER OUR DOORS
Modular Panels
In addition to mesh panels, our framed Systems can be built
with panels in different materials.
Locking Systems
We offer a range of locks suitable for all Performance Levels required in security systems.
Discover our Locking systems
Accessories and Brackets
Mounting Complements and brackets for the full customization
of your Safety Fence.
