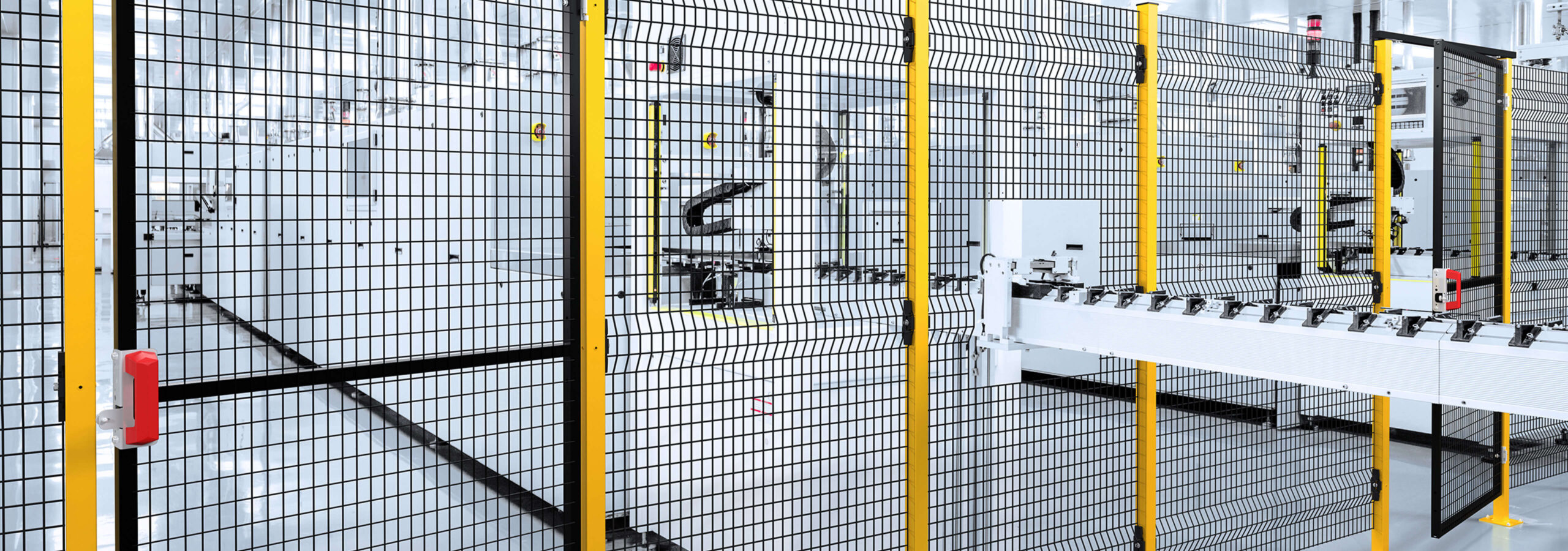

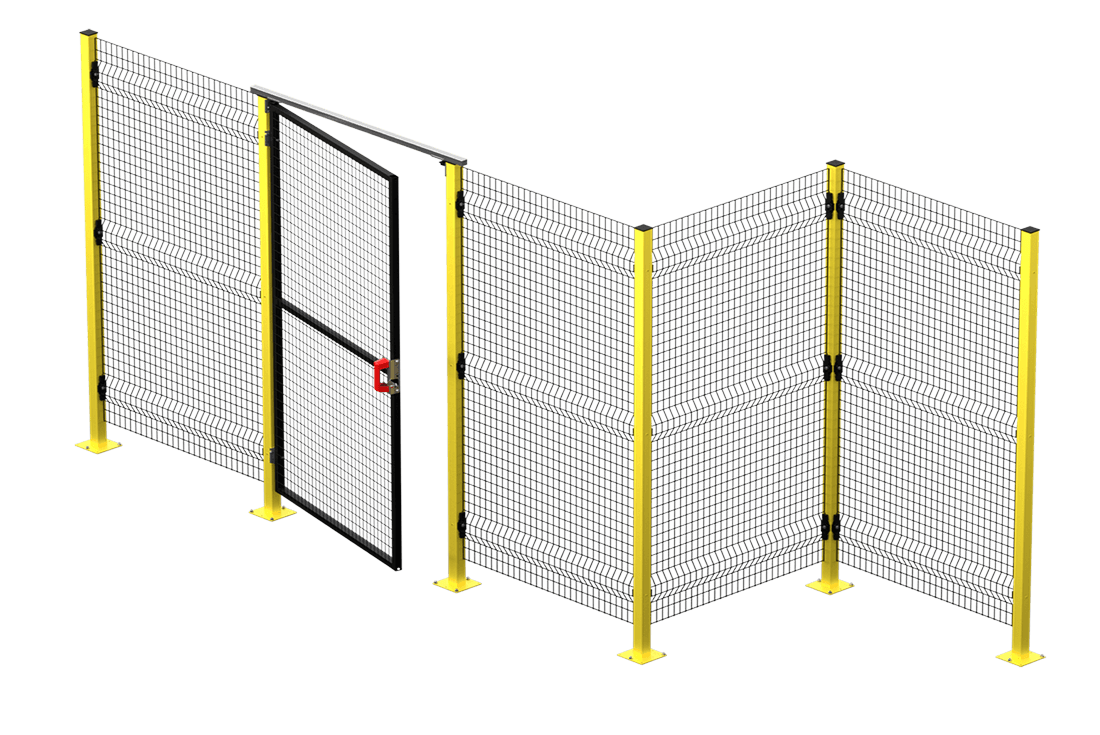

Frameless Machine Guards
Maximum simplicity and productivity.

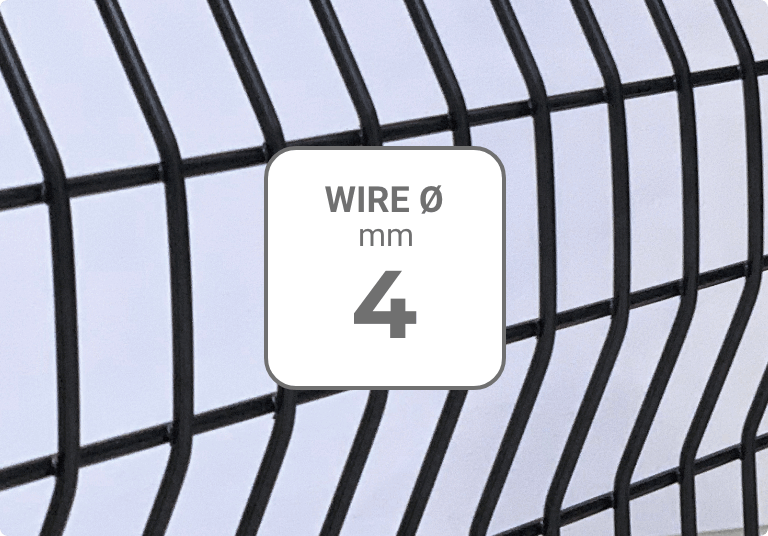

AdaptaGuard frameless modular guarding system perfectly combines practicality and robustness and is an ideal solution where there is a high risk of mechanical impact.The frameless 4 mm steel wire panel is stengthened by transversal folds and it is connected to 50 x 50 mm uprights by strong retaining fasteners. The high thickness heavy baseplate stabilizes the post during assembly.AdaptaGuard is quick to assemble: a single type of post for linear, angular and door mounting reduces setup time, the wide ribs facilitate the use of the electric screwdriver, while the frameless construction allows panel sizes to be adjusted speedily on site.

• PANELS
• POSTS

SPECIFICATIONS

Panels: shaped mesh
Mesh: 32 x 68 x 4 mm
Painting: epoxy-polyester powder (for internal use only)

DIMENSIONS

Bases: 196, 292, 676, 772, 996, 1188, 1476, 1988 mm
Heights: 1500, 2080, 2490 mm

SafetyEN ISO 13857 A 28 x 64 mm slot opening allows the installation of the fence 200 mm from the danger zone

Impact test EN ISO 14120

AdaptaGuard has passed the severe dynamic resistance tests according to the procedure contained in EN ISO 14120 Standard (Hard body / Pendulum Test) up to 1600J

SPECIFICATIONS

Section: 50 x 50 x 1,5 mm
Baseplate: welded, 120 x 120 x 8 mm, with 4 anchoring points
Painting: epoxy-polyester powder (for internal use only)

DIMENSIONS

Heights: 1660, 2240, 2650 mm
OVERALL PROTECTION HEIGHT:1640 - 2220 - 2630 mm

SafetyEN ISO 13857 A 28 x 64 mm slot opening allows the installation of the fence 200 mm from the danger zone

Impact test EN ISO 14120

AdaptaGuard has passed the severe dynamic resistance tests according to the procedure contained in EN ISO 14120 Standard (Hard body / Pendulum Test) up to 1600J

Robust

Greater stability is achieved by connecting the panels to the uprights at the position of the reinforcement ribs

Practical

High-strength nylon-fibreglass fasteners are ergonomically shaped to facilitate quick and easy assembly of the system. The assembly system features a captive bolt fastener according to EN 953 + A1 ISO 14120

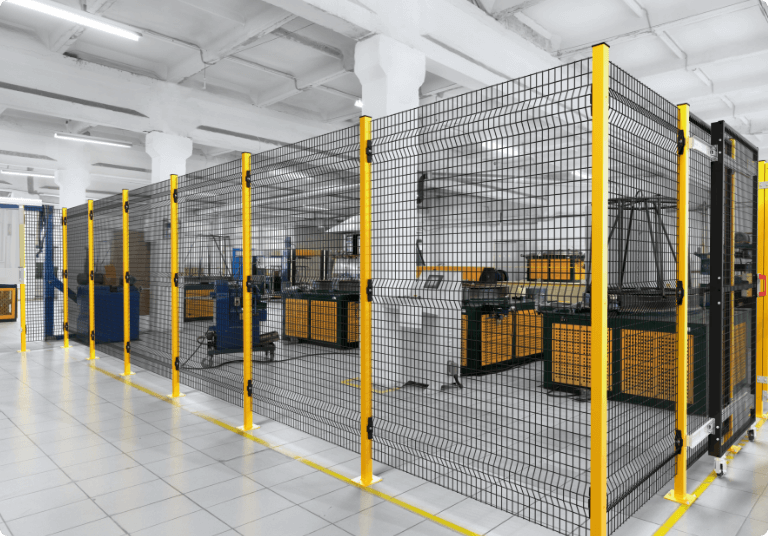

Adaptable

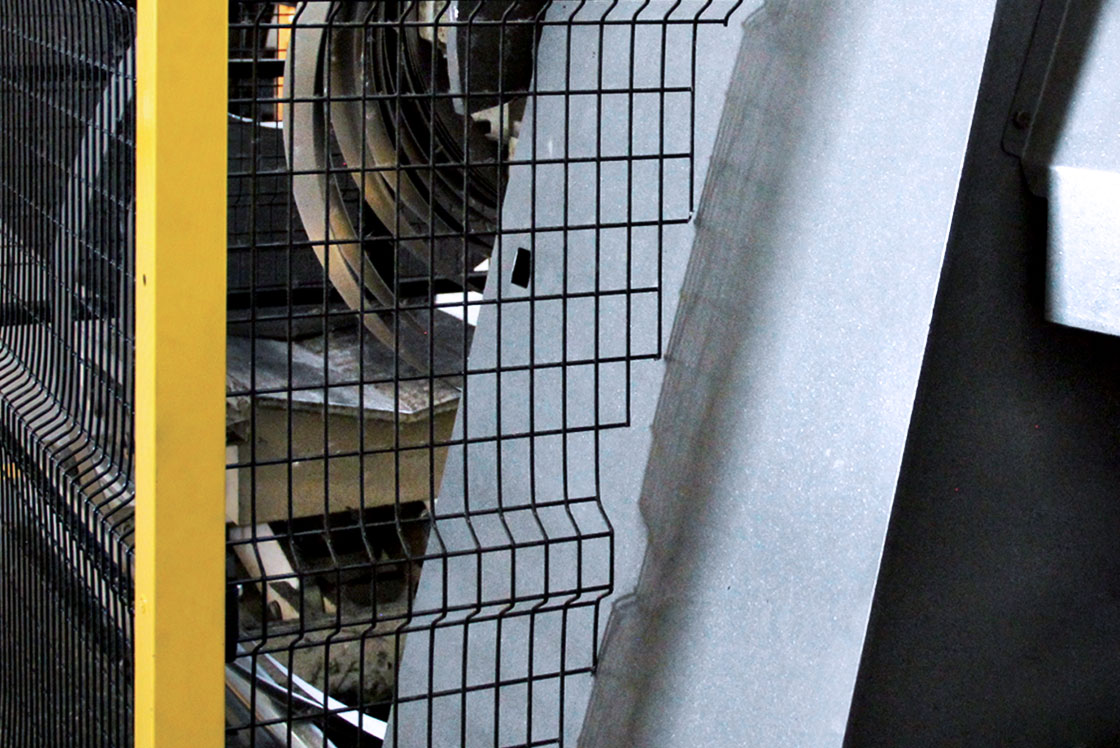

Frameless panel design gives AdaptaGuard the flexibility to meet the requirements of all applications
