BASIC System

Perimeter Protection Series - BASIC

BASIC is a complete and versatile framed Perimeter Safety Guard. Suitable for any machinery layout, BASIC can be completed with a wide range of accessories and doors. The modular design, ergonomics, ease of assembly and full compatibility with doors and accessories make BASIC a proper Perimeter Safety Guard Solution for most industries.
Protezioni perimetrali macchine
SPECIFICATIONS

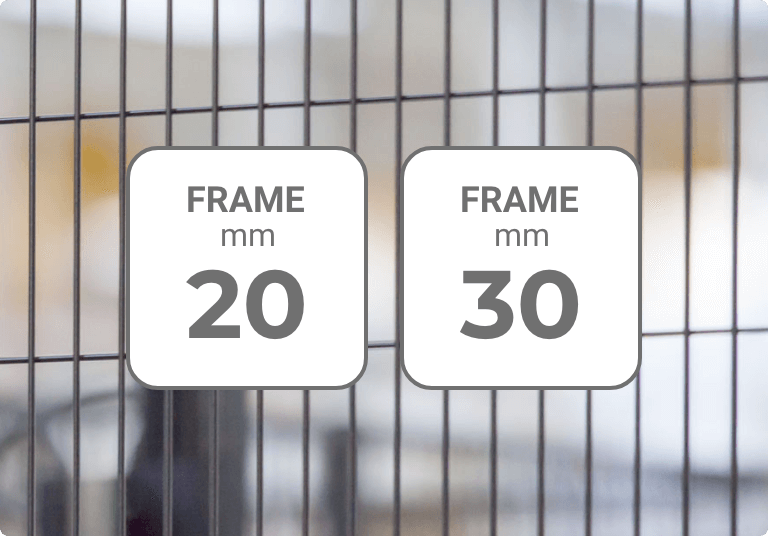

Panels Frame: 20 x 20 mm

Mesh: 20 x 100 x 3 mm

Mesh Slot: 17 x 97 mm

Coating: powder (indoor use)
DIMENSIONS
Modularity: 400 (200 + 200), 500 (200 + 300), 600 (300 + 300), 900 (700 + 200), 1100 (800 + 300), 1300 (1000 + 300), 1400 (1200 + 200), 2000 (1000 + 1000), 2400 (1200 + 1200), 3000 (1500 + 1500)
Bases:
200, 300, 700, 800, 1000, 1200, 1500 mm

Heights:
1500, 2080, 2480 mm
Protezioni perimetrali macchine
SPECIFICATIONS
Posts: 40 x 40 x 2 mm

Baseplate: to assemble, with 3 or 4 anchoring points or welded (optional)

Coating: powder (indoor use)
DIMENSIONS
Posts (adjustable):
1660, 2240, 2640 mm
Protezioni perimetrali macchine
BASIC - QUICK CLAMP

SATECH has developed a connecting system between panel and upright that achieves remarkable time savings during assembly and height adjustment. It also allows easy reinstallation of the guard after it has been removed for non-routine maintenance. EN ISO 14120 6.4.4.1 bProtezioni perimetrali macchine
