STRONG/HEAVY System

Perimeter Protections Series - STRONG/HEAVY

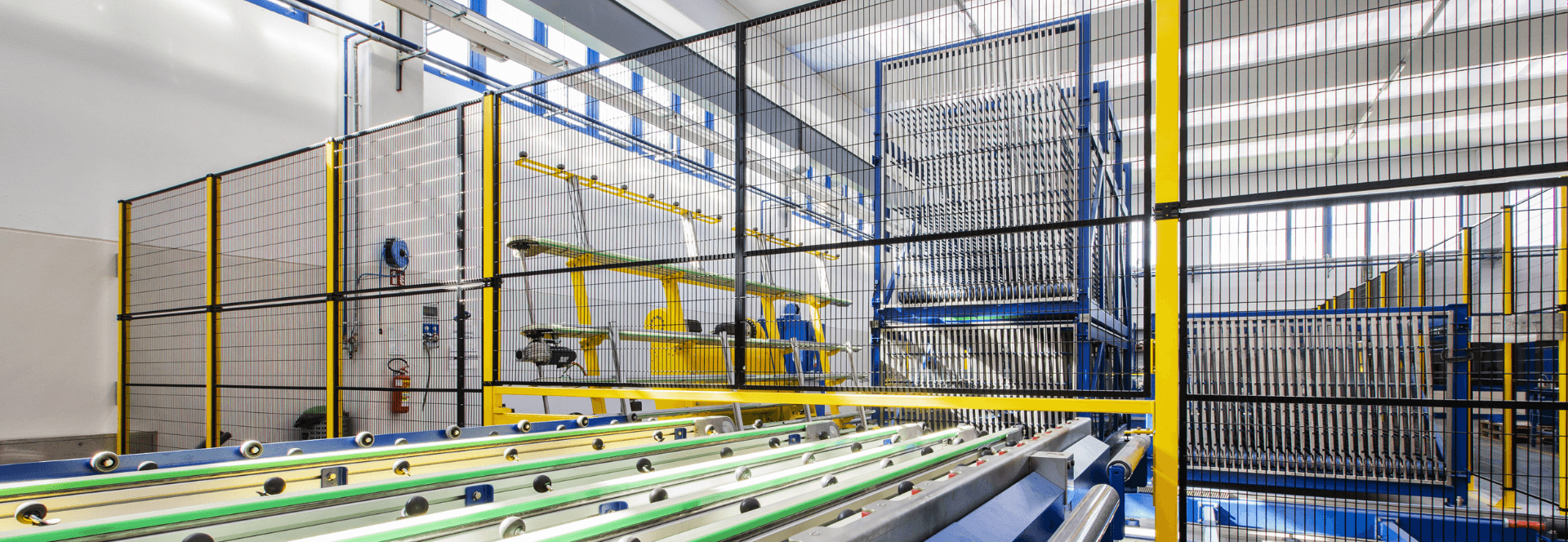

Protection and accident prevention system consisting of 60x60 uprights and 20x20 or 30x30 (HEAVY) panels with frames connected by SATECH patented fast assembly clamps. This series is used in heavier applications such as industrial robotics or the steel industry.

• PANELS
• POSTS

SPECIFICATIONS

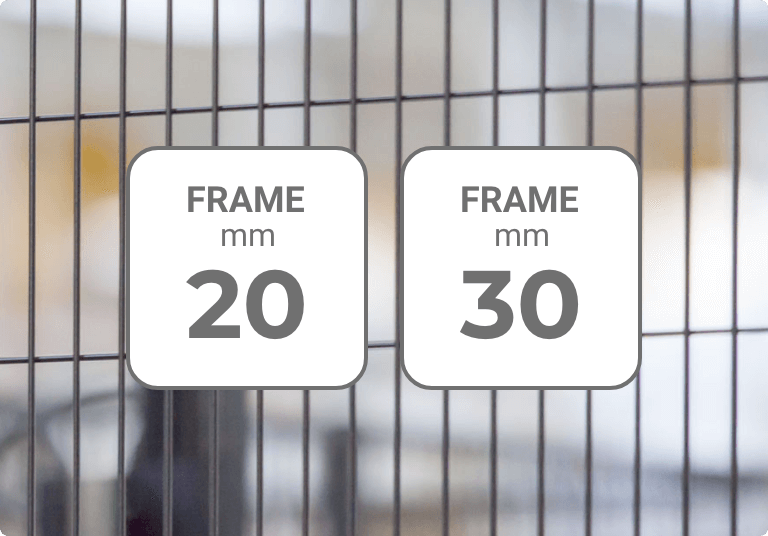

Panels Frame: 20 x 20/ 30 x 30
Mesh: 22 x 100 x 3
Painting: Epoxy polyester powder (indoor use)

DIMENSIONS

Modularity: 400 (200 + 200), 500 (200 + 300), 600 (300 + 300), 900 (700 + 200), 1100 (800 + 300), 1300 (1000 + 300), 1400 (1200 + 200), 2000 (1000 + 1000), 2400 (1200 + 1200), 3000 (1500 + 1500)

Bases:
200, 300, 700, 800, 1000, 1200, 1500
Heights:
1500, 1900, 2080, 2480, 2860

SPECIFICATIONS

Posts: 60 x 60 x 2
Baseplate: Forged with 4 anchor points
Painting: Epoxy polyester powder (indoor use)

DIMENSIONS

Posts:
1660, 2060, 2240, 2640, 3035

CLIP STRONG/HEAVY

Satech has developed a connecting system between panel and upright that achieves remarkable time savings during assembly and height adjustment. It also allows easy reinstallation of the guard after it has been removed for non-routine maintenance. EN ISO 14120 6.4.4.1 b
