BlueGuard Stainless Steel Hygienic Fencing
Key System features
Panels
- MESH (mm)
- 32 x 68 x 4
- MESH SLOT (mm)
- 28 x 64
- WIDTHS (mm)
- 48499614761988
4 WIDTHS, IDEAL FOR YOUR LAYOUT
The 4 standard modular widths of the BlueGuard panel are designed to fit any kind of layout. The frameless panel can be easily cut on-site to create all intermediate widths in 32 mm increments.
- HEIGHTS (mm)
- 2080
Posts

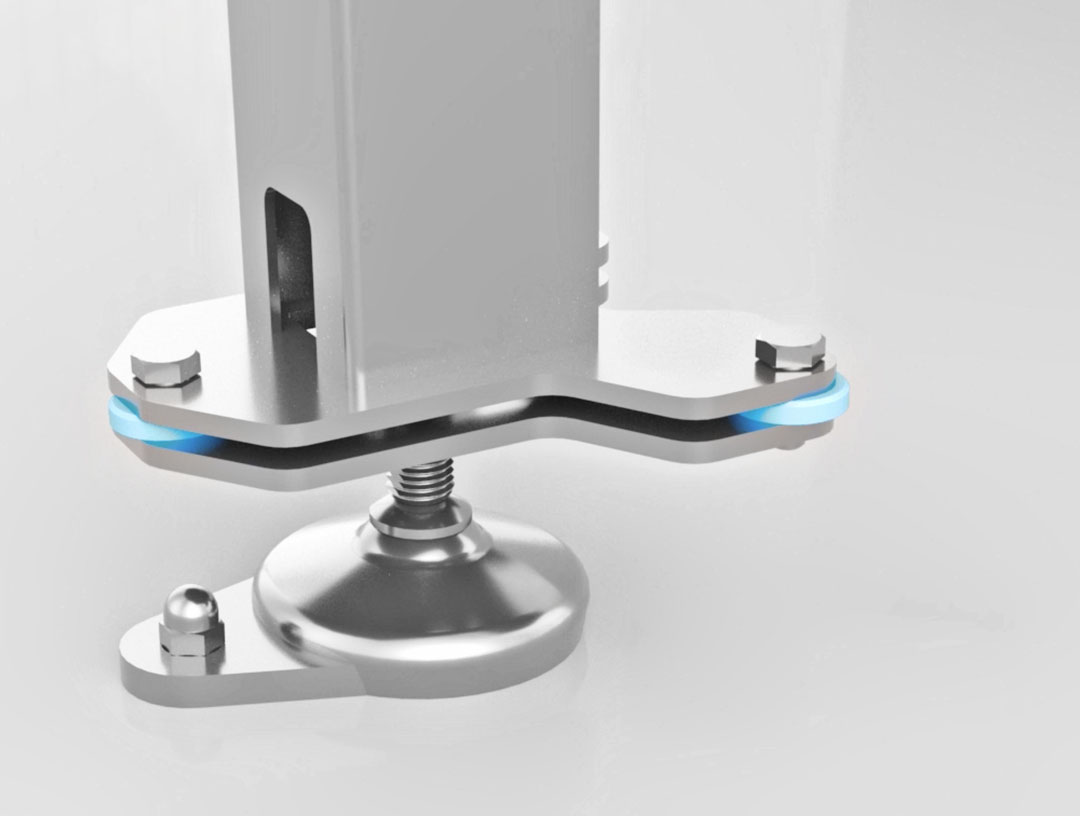

- BASEPLATES

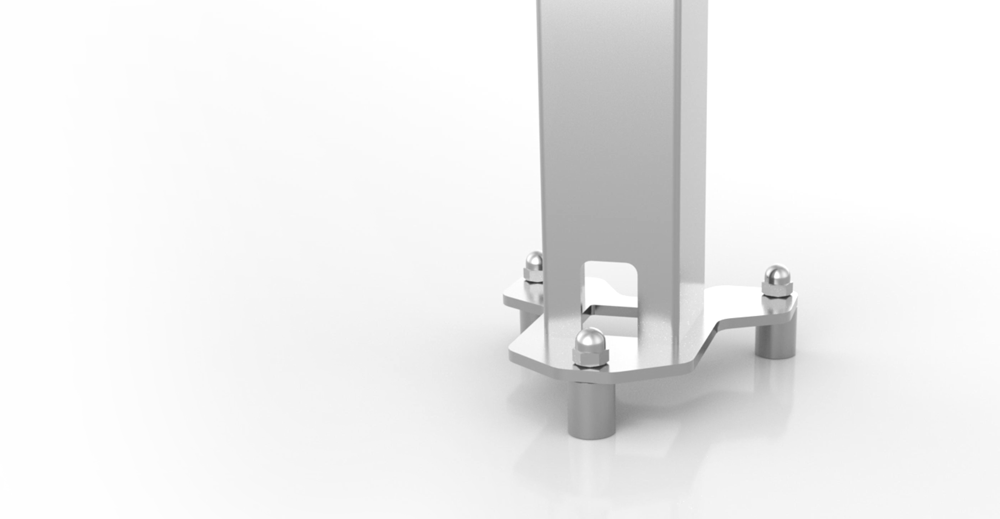

- with 4 anchoring points and floor spacers
- HEIGHTS (mm)
- 2240
Materials
- POSTS AND PANELS
- High quality passivated AISI 304L Stainless Steel
- TECHNOPOLYMER
- DOMAMID® 6G30FC for food
The Stainless Steel Frameless Panel
Safe, practical, resistant
-
Adaptable
Ready for all eventualities
The frameless mesh allows to quickly fit the panel on-site to any need - all by using basic tools and without the need for repainting.
-
Easy to handle
Light and robust
Lightweight yet robust, the Satech frameless panel can be easily handled by just one person.
-
Safe and resistant

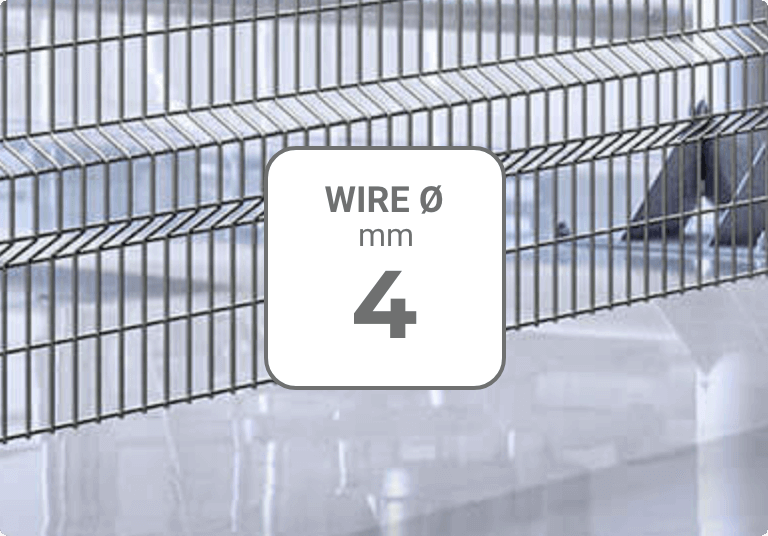

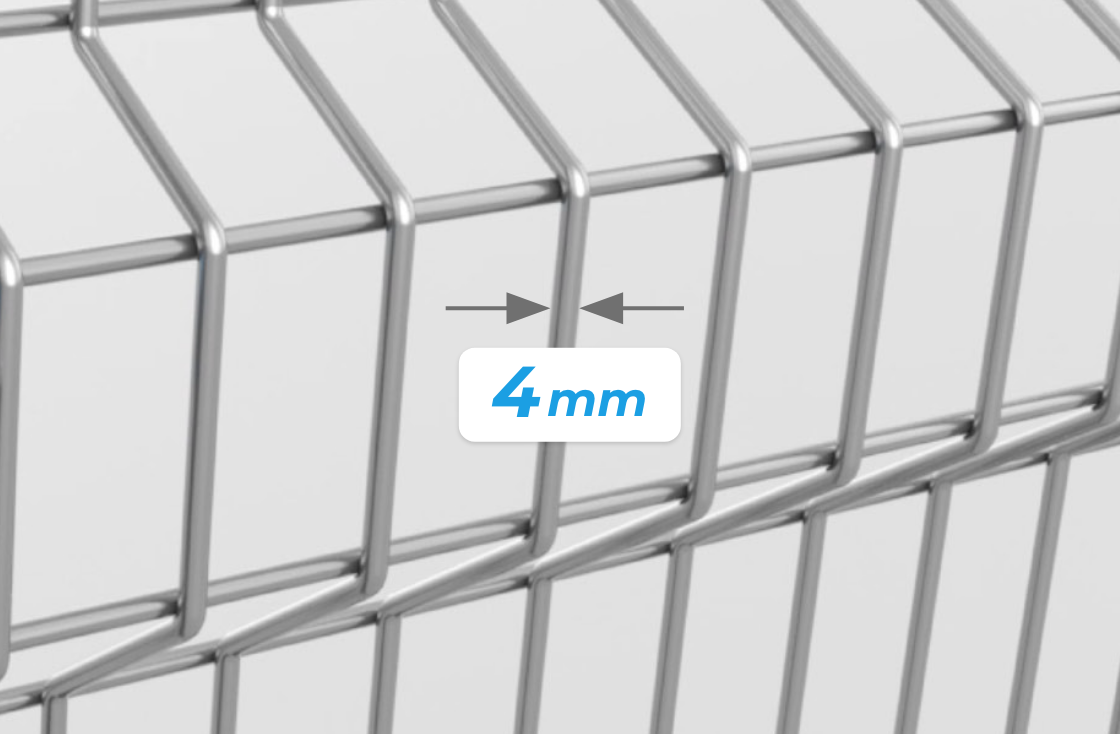

4 mm wire and reinforcing ribs
The electrowelded mesh made of 4 mm high-strength steel wire and its reinforcing ribs make the panel strong and able to dynamically absorb impacts.
-
Visibility
EN ISO 14120-5.9

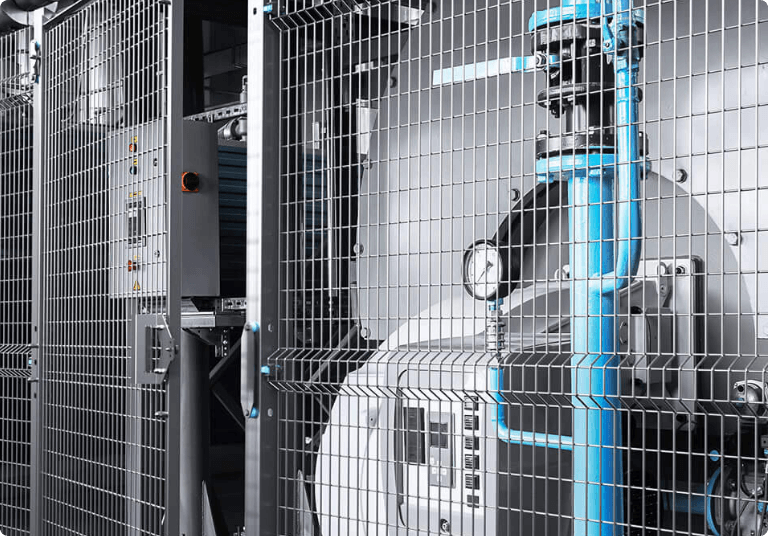

The vertical mesh shape ensures excellent machinery visibility.
-
Noise reduction
EN ISO 14120-5.1.5
Welds at wires intersection prevent
the risk of resonance. -
Less distance,
more space savedEN ISO 13857

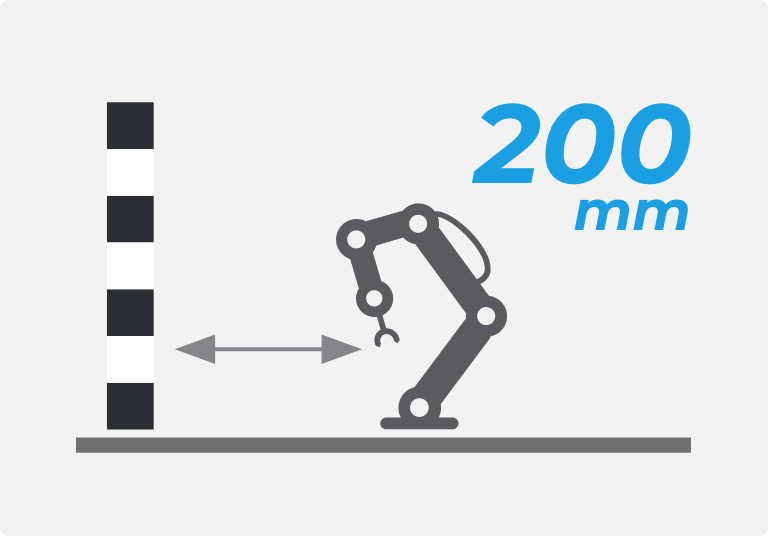

The 28x64 mm mesh slot allows to install the Guard only 200 mm from hazard (EN ISO 13857), reducing the space occupied by the safety perimeter.
Hygienic Design
in 4 steps
Reduced contact surfaces
Open design and inclined surfaces
Floor spacers
TIG welding
Maximum Safety - Food material
To avoid any potential contamination, BlueGuard components are all made of high-quality, passivated AISI 304L Stainless Steel. Fastenings come with food contact approved DOMAMID® 6G30FC inserts.
Tested for high-pressure washing
BlueGuard is designed to be durable and to withstand accidental impacts, aggressive environments and frequent high-pressure washing.
Tested on 2000 wash cycles
BlueGuard Hygienic Fencing has been subjected to strict endurance tests for more than 2000 wash cycles (6 years of use) with the following ECOLAB® detergents: TOPAZ AC5, P3-TOPAX 990, TOPACTIVE DES, P3-TOPAX 66, TOPAZ HD3, TOPAZ MD3.
Safe and resistant

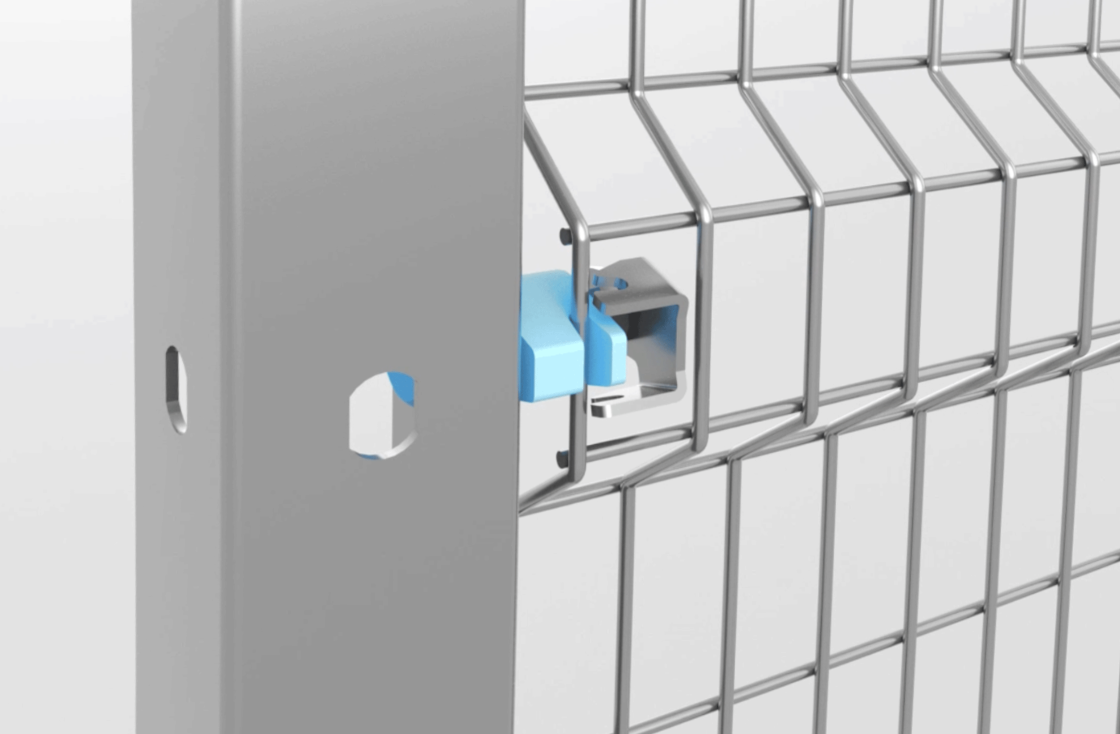

The frameless, AISI 304L Stainless Steel panel in 4 mm wire is strenghtened by reinforcing ribs to absorb any impact dynamically. The panel is connected to the U-shaped posts by sturdy captive retained fastenings in accordance with the 2006/42/EC Machinery Directive.
Simple and ergonomical
A single type of post for linear, angular and door assembly reduces BlueGuard's installation time, while its wide ribs ease the use of electric tools.
Adaptable on-site

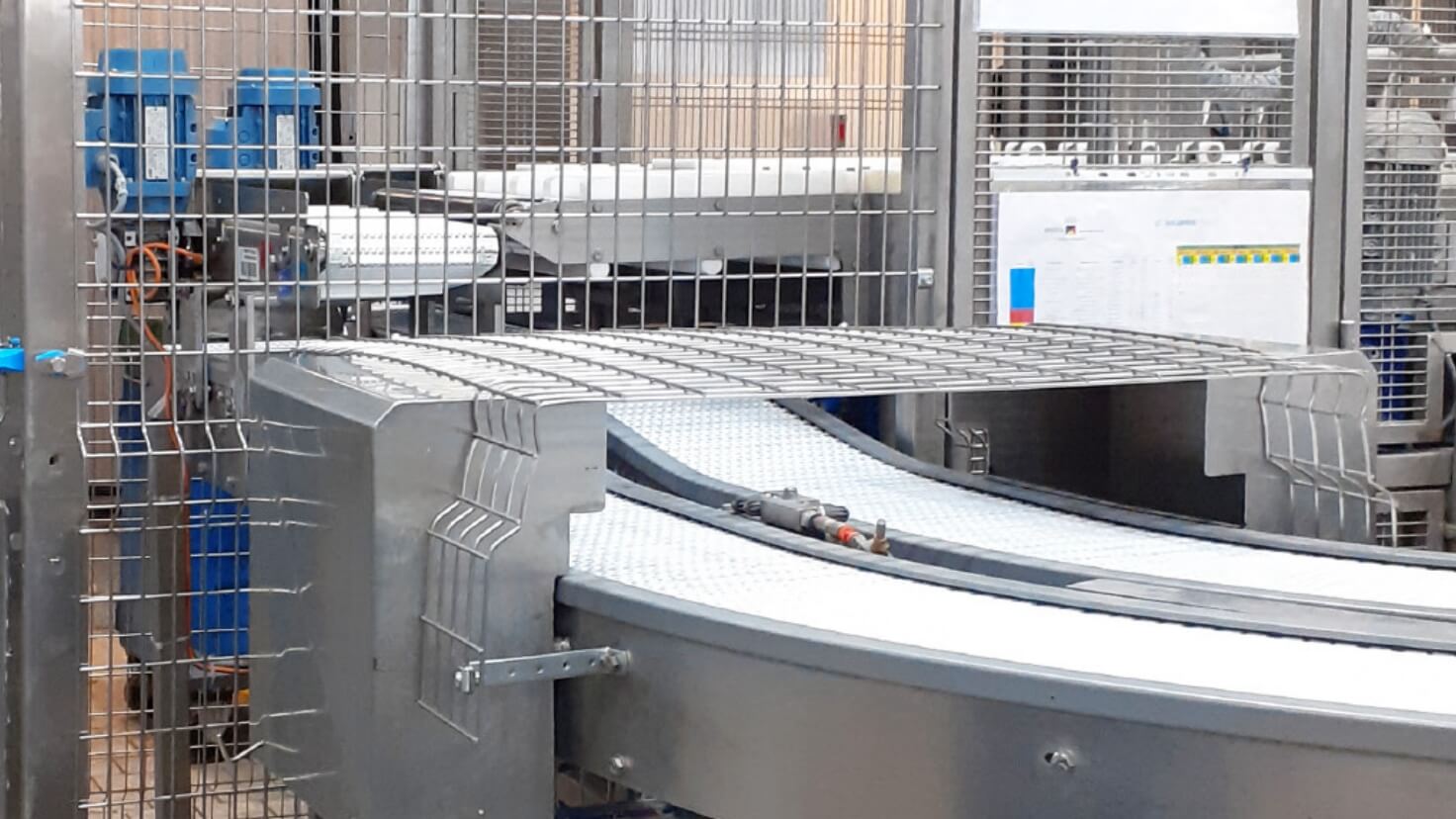

The lack of a frame allows to adapt and fit the size of BlueGuard panels directly on-site.
Developed in collaboration with EHEDG
BlueGuard was born from the collaboration with EHEDG (the European Hygienic Engineering and Design Group) and complies with the high hygienic standards required in the Agro-food, Chemical and Pharmaceutical industries (EN 1672-2, EN ISO 14159).
|
|
|
|
|
||
|---|---|---|---|---|---|---|
| Machine Guard - Standard heights (mm) |
1640, 2220, 2620 | 1640, 2220, 2620, 3140 | 1640, 2220, 2620 | 1640, 2220, 2630 | 2220 | |
| Frame section (mm) | 20 | 20 / 30 (HEAVY) | 20 / 30 | Frameless | Frameless | |
| Post section (mm) | 40 | 60 | - | 50 | 60 | |
| Assembly system | Nuts and Bolts or Patented Quick Clamp | Patented Quick Clamp or Captive Nuts and Bolts | Upper Connections + Special Baseplates | Techno-polymer fastenings | Food techno-polymer fastenings | |
| Price range | €€ | €€€ | € / €€ | €€€ | €€€€ | |
| Speed of assembly | ||||||
| Mesh (mm) | 20 x 100 x 3 | 20 x 100 x 3 | 20 x 100 x 3 | 32 x 68 x 4 | 32 x 68 x 4 | |
| Tested resistance to Impact (max) |
1608 J When assembled with Nuts and Bolts |
1608 J When assembled with Nuts and Bolts |
115 J* / 390 J *Standard value required by EN ISO Regulations |
1608 J | 500 J | |
| Min. Distance from hazard (mm) |
120 (EN ISO 13857) |
120 (EN ISO 13857) |
120 (EN ISO 13857) |
200 (EN ISO 13857) |
200 (EN ISO 13857) |
|
| Non-mesh panel options(FullSteel, transparente sheet, mixed) | - | - |
BlueGuard Modular Hygienic Fencing
Resources
BlueGuard - Product video
Discover how to assemble our BlueGuard Modular Hygienic Fencing in this video.
BlueGuard - Assembly instructions
DownloadBlueGuard doors and accessories
Access to Stainless Steel perimeters is provided by hinged and sliding doors, with single or double opening. BlueGuard doors and accessories are designed and manufactured in accordance with Hygienic Design guidelines.
Hinged Door
For man passage
Simple door for man passage featuring hinges, framed panel with flat welded mesh (4 and 6 mm wire), 20×30 mm upper crossbar and magnet lock.
Sliding Door
Upper Guide

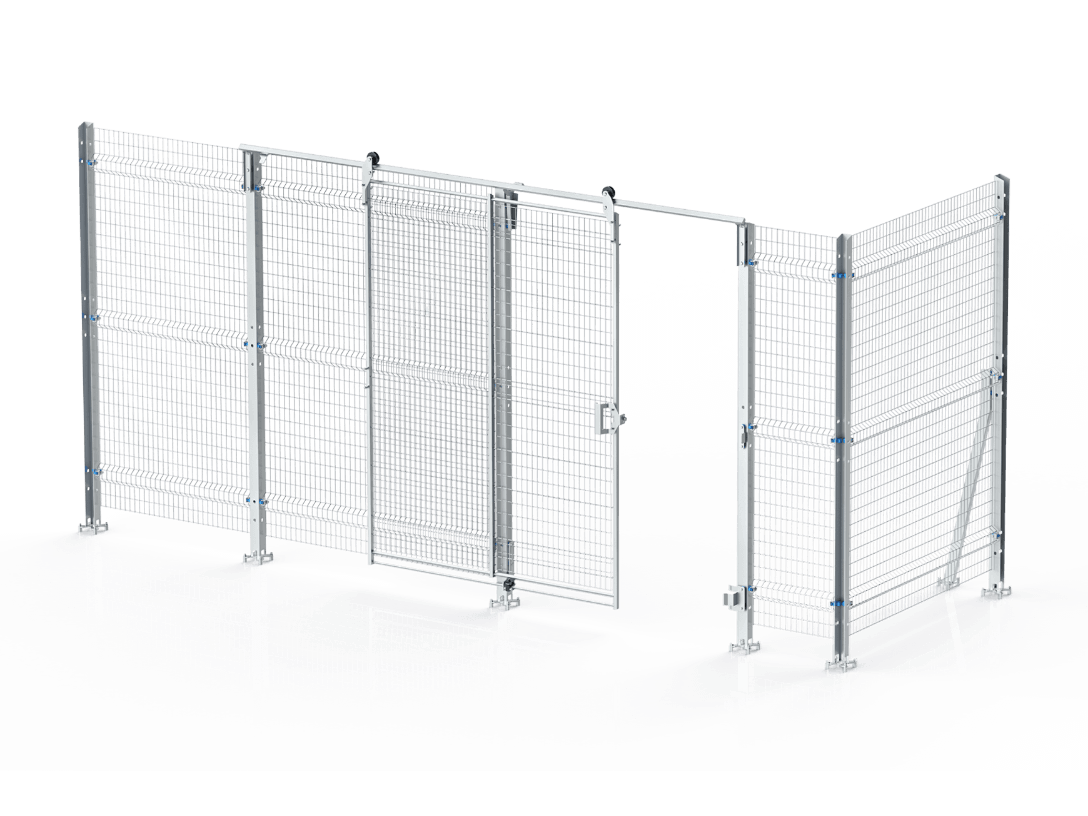

Sliding door with an open upper guide. Features framed panel door leaves with flat welded mesh (4 and 6 mm wire), 20×30 mm upper guide and magnet lock.
Variable angle

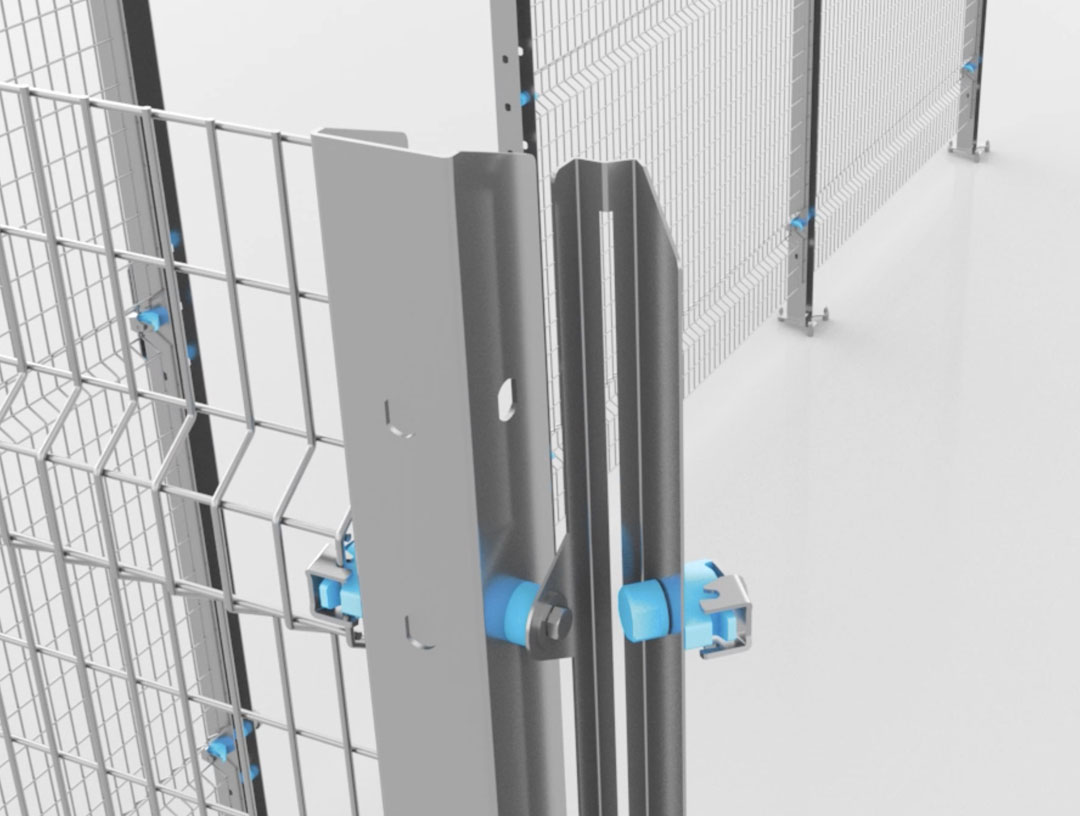

BlueGuard’s universal post allows linear (180°) and angular (90°) panel assembly. The variable angle kit is an accessory to join panels at an angle between 20° and 70°.
Post support strut

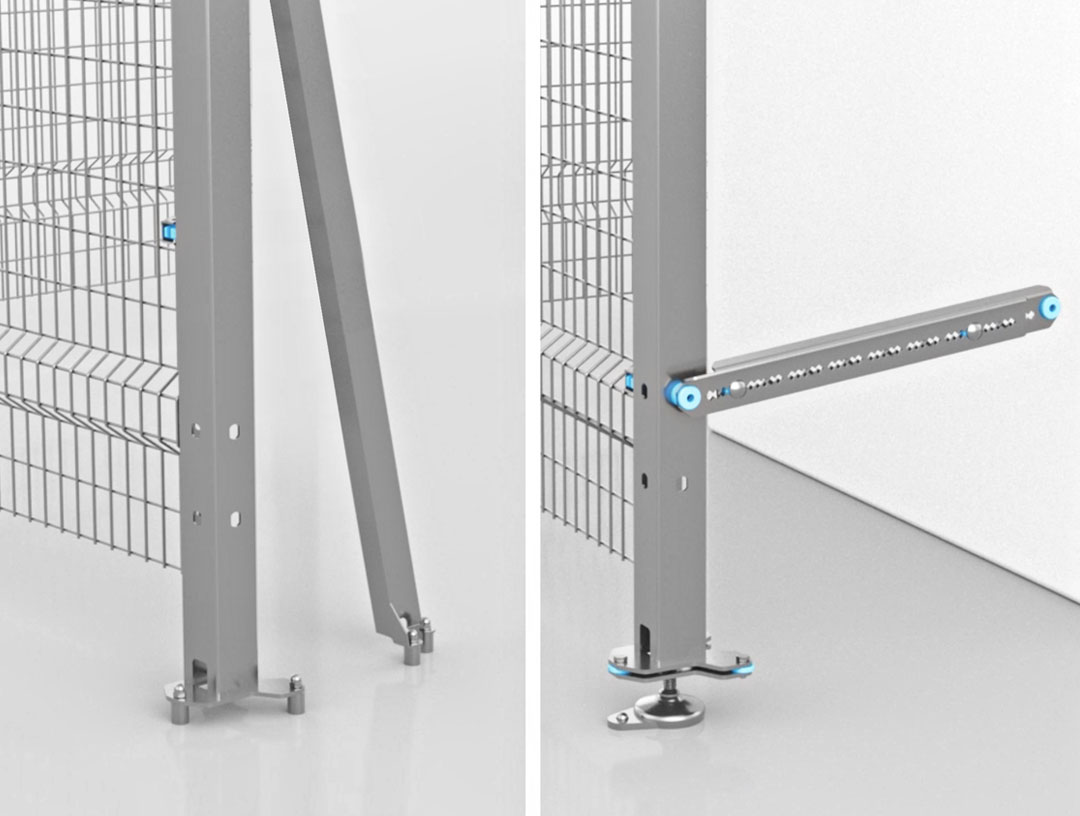

The post support strut helps reinforcing posts subjected to significant horizontal dynamic loads as well as reinforcing posts placed in critical layout positions.

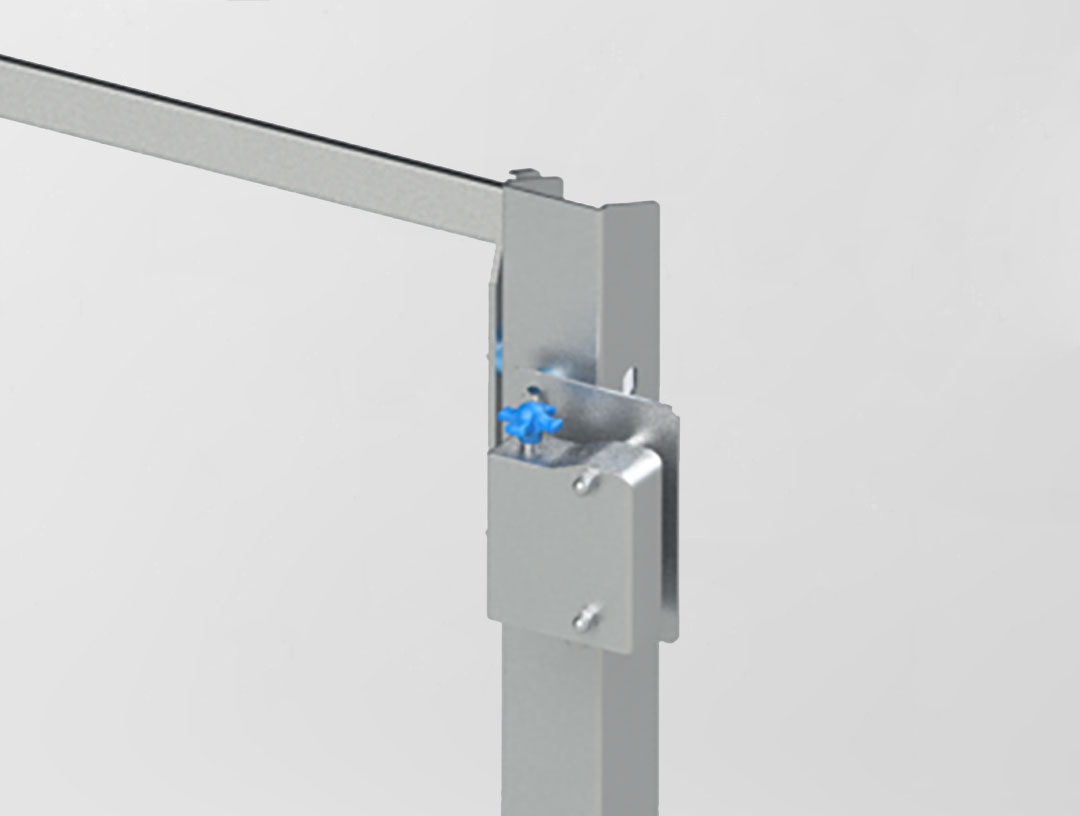

Safety Switch Brackets
Stainless Steel brackets to support Safety Switches. Models compatible with products from leading manufacturers as well as custom brackets designed upon request.
